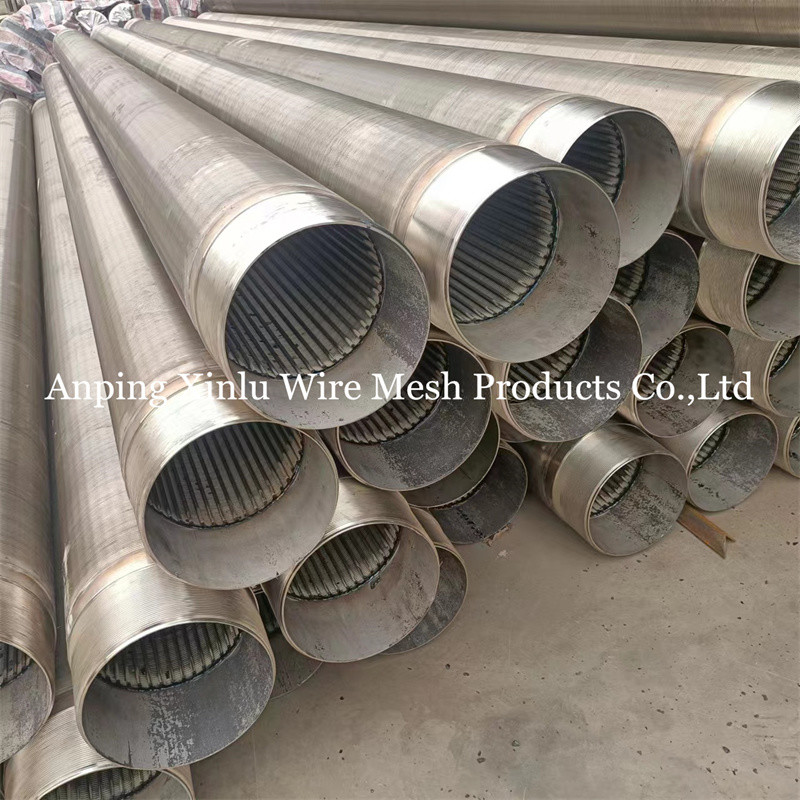

Pure Round 316L Wire Wrapped Johnson Screen Tube diameter 33-300mm for Juice and Beer Filter Treatment
Product Description:
Wire Wrapped Screens are mild steel products available in different materials including Q235, Q195. The wedge wire sizes ranging from 0.75x1.8mm to 4x7mm, while length available from 0.5-6m (10ft, 20ft) and diameter from 1" to 20”. These Wire Wrapped Screens are widely used for well screens, filter nozzles, water intake screens, filter cylinders and filter tubes. The surface treatment of these Wire Wrapped Screens can be Electrolytic Polishing, Pickling, Galvanizing, No Burrs, Smooth and Bright etc. They are also known as Wire Wrapped Johnson Screen, Wedge Wire Wrapped Screen Nozzle, Wedge Wire Wrapped Screen Tube.
Features:
- Product Name: Wire Wrapped Screens
- Duplex stainless steel: 2205,904L
- Roundness: Pure Round And Angular
- Standard length: 3m, 6m (actully 2.9-2.95m, 5.8-5.95m To Fit Container)
- Slot size: 0.05mm-10.0mm
- Surface Treatment: Electrolytic Polishing, Pickling, Galvanizing, No Burrs, Smooth, Brightetc.
- Main Products: Wedge Wire Wrapped Screen Plate, Wedge Wire Wrapped Screen Panel, Wire Wrapped Screen Plate, Wire Wrapped Screen Panel
Technical Parameters:
| Parameter | Value |
| Application | Filtration, Separation, Water Treatment, Oil And Water Well Driling Seawater Treatment, Pump Filter, Motor Filter, Juice,etc. |
| Wedge Wire | 0.75x1.8mm, 1x2mm, 1.5x2mm, 1.5x2.5mm, 2x3mm, 2.2x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3x6.2mm, 4x7mm, Etc |
| Slot size | 0.05mm-10.0mm |
| Standard length | 3m, 6m (actully 2.9-2.95m, 5.8-5.95m To Fit Container) |
| Roundness | Pure Round And Angular |
| Duplex stainless steel | 2205,904L |
| Diameter | 1", 2", 3", 4-1/2", 5", 6-5/8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", ..., 20”, Etc |
| Support wire | 1x2mm, 1.5x2.5mm, 2x3mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3x6mm, 4x7mm, Etc |
| Surface Treatment | Electrolytic Polishing, Pickling, Galvanizing, No Burrs, Smooth, Brightetc. |
| Mild Steel Material | Q235, Q195 |
| Product Name | Wedge Wire Wrapped Screen Tube, Stainless Steel Wire Wrapped Screen, Wedge Wire Wrapped Screen Tube, Mild Steel Wire Wrapped Screen |
Precision 316L Wire Wrapped Johnson Screen Tubes for Superior Filtration in Juice and Beer Industries
Product Overview: Anping County Xinlu Wire Mesh Products Co., Ltd introduces our Pure Round 316L Wire Wrapped Johnson Screen Tubes, designed for exceptional filtration performance in the juice and beer industries. These tubes are crafted from premium 316L stainless steel, ensuring durability and compatibility with food-grade applications.
Applications: Our Wire Wrapped Screens, branded XinLu, are certified with CO, FORM E, FORM F, SGS, and are recognized for their reliability in various filtration processes, including:
- Water treatment
- Oil and water well drilling
- Seawater treatment
- Pump and motor filters
- Juice and beer filtration
Customization: XinLu offers tailored Wire Wrapped Screen solutions to fit the specific needs of a broad range of industries. With a minimum order quantity of 10pcs and competitive pricing from $50 to $400, we provide customization options to meet your exact requirements.
Product Specifications:
| Specification | Detail |
| Diameter Range | 33-300mm (1" to 20") |
| Material | Stainless Steel 201, 304, 304L, 316L, 321 |
| Support Rods | 2.5-6mm |
| Slot Size | 0.05mm-10.0mm |
| End Connection | Threaded Ends: API STC, BSP, NPT, BSPP, G"; Plain End: Welded Rings; Flange |
| Surface Treatment | Electrolytic Polishing, Pickling, Galvanizing |
| Standard Length | 3m, 6m (actual 2.9-2.95m, 5.8-5.95m to fit container) |

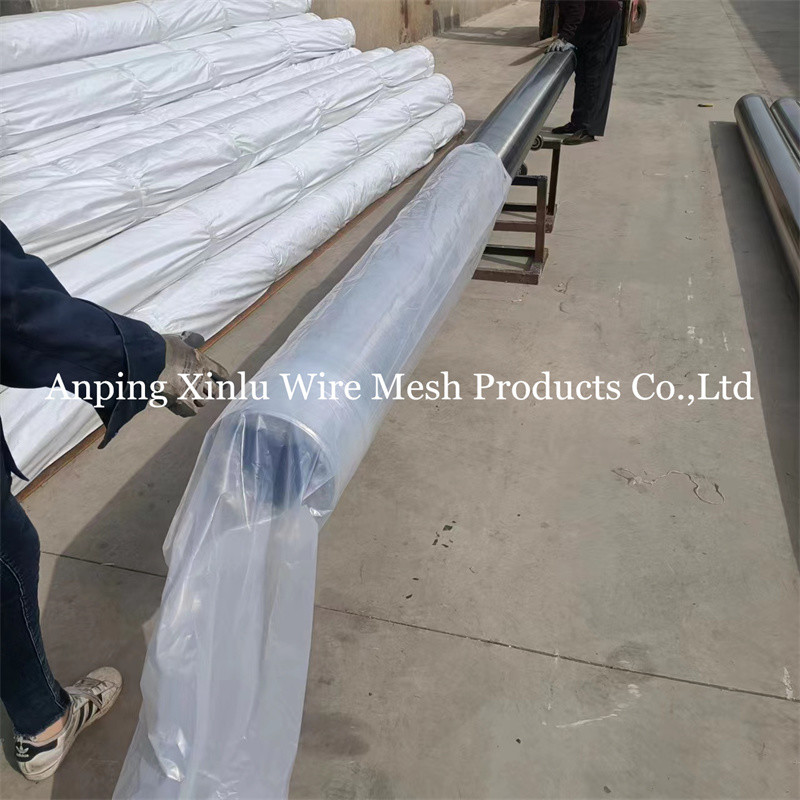

| Packaging | Inside transparent plastic bag, outside woven bag, bubble bag, wooden box, or pallet |
| Delivery Time | 5-20 days according to order quantity |
| Payment Terms | T/T, cash, or others |
| Supply Ability | 300pcs/month |
Technical Support and Services: Our team of experienced professionals provides comprehensive technical support and services for our Wire Wrapped Screens. We offer product support, installation, maintenance, and warranty services to ensure your satisfaction and the optimal performance of our products.
Packing and Shipping: Our Wire Wrapped Screens are carefully packaged in sturdy cardboard boxes to ensure safe arrival. We ship via ground carrier, providing a tracking number upon request, with all orders shipped within 3-5 days of placement.
About Anping County Xinlu Wire Mesh Products Co., Ltd: We are committed to delivering high-quality wire wrapped screens for various filtration applications. Our focus on innovation and customer satisfaction ensures that you receive the best products and services in the industry.
