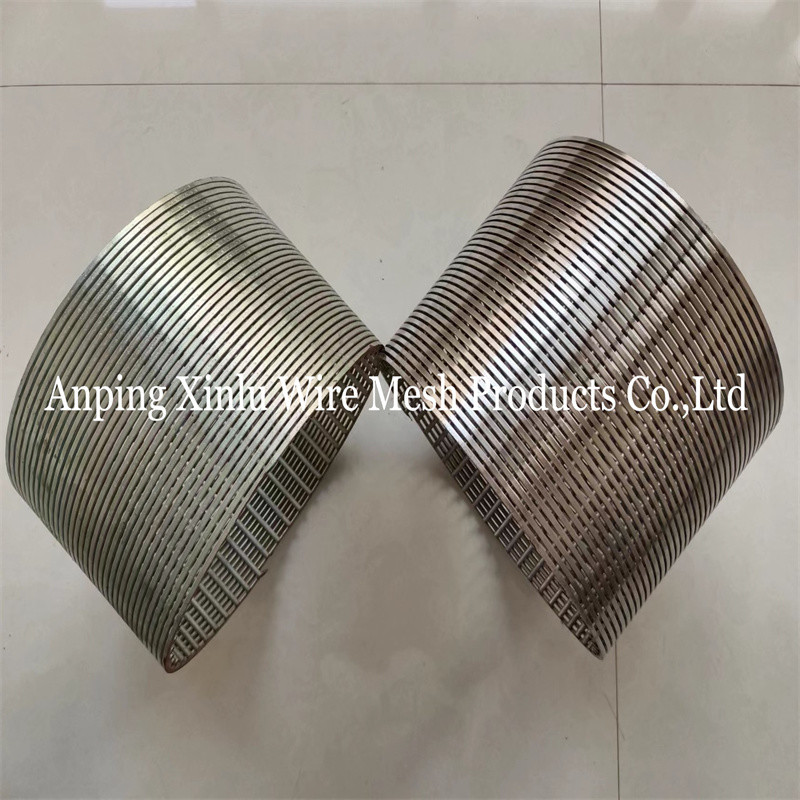

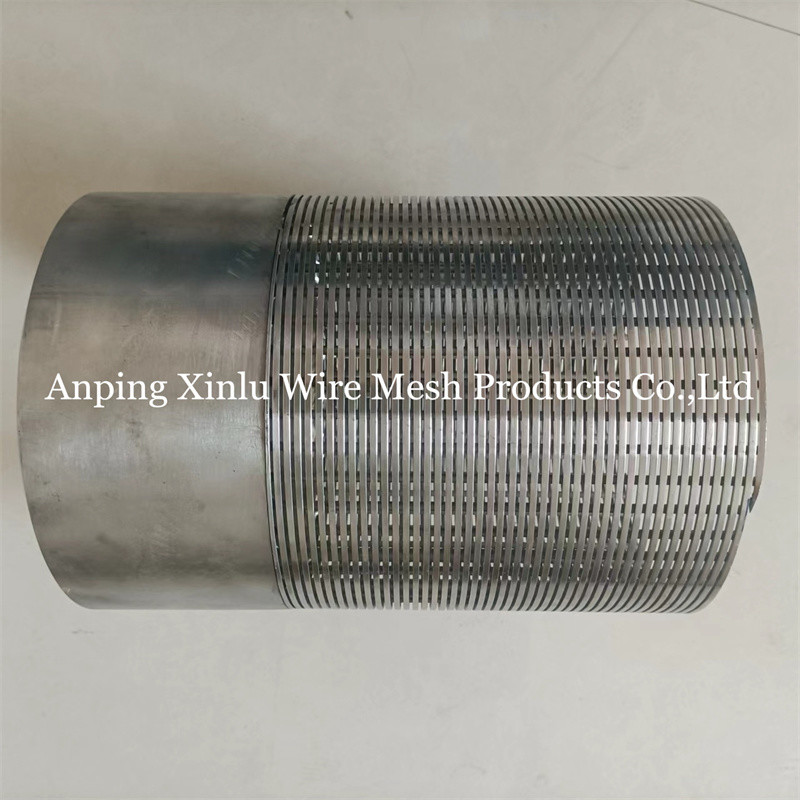

FOTI Flow type Wedge / V Wire wrapped johsnon screen pipe with 6" 8" 10" Diameter
Product Description:
V Wire Screen Pipe is a premium-quality, non-plugging screen pipe made of stainless steel with a wire diameter ranging from 1-5mm, and a V profile wire of 0.76x1.8mm(11SS), 1x2mm(12SS), 1.5x2mm, 1.5x2.5mm(#63), 2x3mm, 2.2x3.5mm(#93), 2.5x4mm, 3x4.6mm(#118), 3x5mm, 3.02x6mm. With a slot tolerance of ±0.05mm, it is available in a variety of diameters from 1-20 inch. V Wire Screen Pipe, also known as Johnson V Wire Screen Pipe or V Wire Wrapped Screen Pipe, is ideal for use in groundwater filtration and well applications where clogging may be an issue, as it has been designed to provide superior performance with minimal clogging and plugging.
Features:
- Product Name: V Wire Screen Pipe
- Advantage: High Pressure Resistance, Compressive Strength, Anti-stress, High Tensile Strength, No Burrs , Brightly, Electrolytic Polishing, Pickling And Polishing, Bright Galvanized, Smooth Surface, Easy Cleaning, Easy Installation, Long Using Life
- Package: Wooden Case, Carton Box, Pallet
- V Profile Wire: 0.76x1.8mm(11SS), 1x2mm(12SS), 1.5x2mm, 1.5x2.5mm(#63), 2x3mm, 2.2x3.5mm(#93), 2.5x4mm, 3x4.6mm(#118), 3x5mm, 3.02x6mm
- Material: Stainless Steel: Stainless Steel 201, 205, 304, 316L, 321, Etc
- Material: Low Carbon Galvanized: Q195, Q235
- Continuous slot screen pipe
- V wire screen pipe supplier
- V wire screen pipe manufacturer
Technical Parameters:
| Parameter | Specification |
|---|
| Inverted Wire Construction | External Circumferential Inverted Wire And Axial Internal Support Rods, Radial Slot Execution, Internal Circumferential Wire (Re-rolled: I.C.W): Internal Circumferential Wire With External Axial Support Rods |
| Roundness(Circular Degree) | Pure Round (no Angles) And With Angles |
| Threaded Type | NPT, BSP, G", STC, Or Customized |
| Product Name | V Wire Screen Pipe, Johnson V Wire Screen Pipe, V Wire Wrapped Screen Pipe, Stainless Steel V Wire Screen Pipe |
| Application | Water/ Oil/ Gas/ Mining/ Motor/ Pump/ Sewage Treatment/ Groundwater Treatment/ Waste Water Treatment/ Water Ion Exchange/ Sand Filter/ Activited Carbon Filter/ Sugar Industry/ Paper Industry |
| Wire Diameter | 1-5mm |
| Flow type | FOTI (From Outside To Inside). FITO (From Inside To Outside) |
| Advantage | High Pressure Resistance, Compressive Strength, Anti-stress, High Tensile Strength, No Burrs , Brightly, Electrolytic Polishing, Pickling And Polishing, Bright Galvanized, Smooth Surface, Easy Cleaning, Easy Installation, Long Using Life |
| Material | Low Carbon Galvanized: Q195, Q235; Stainless Steel: Stainless Steel 201, 205, 304, 316L, 321, Etc |
Applications:
V Wire Screen Pipe
Brand Name: Xinlu Company
Model Number: 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", or customized
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO, ISO, SGS
Minimum Order Quantity: 10pcs
Price: 10-200USD/m, according to the specification
Packaging Details: Transparent plastic bag inside, woven bag outside or bubble bag or wooden boxes or pallets or container
Delivery Time: 5-10 days, depending on order quantity
Payment Terms: T/T, cash
Supply Ability: 500pcs/month

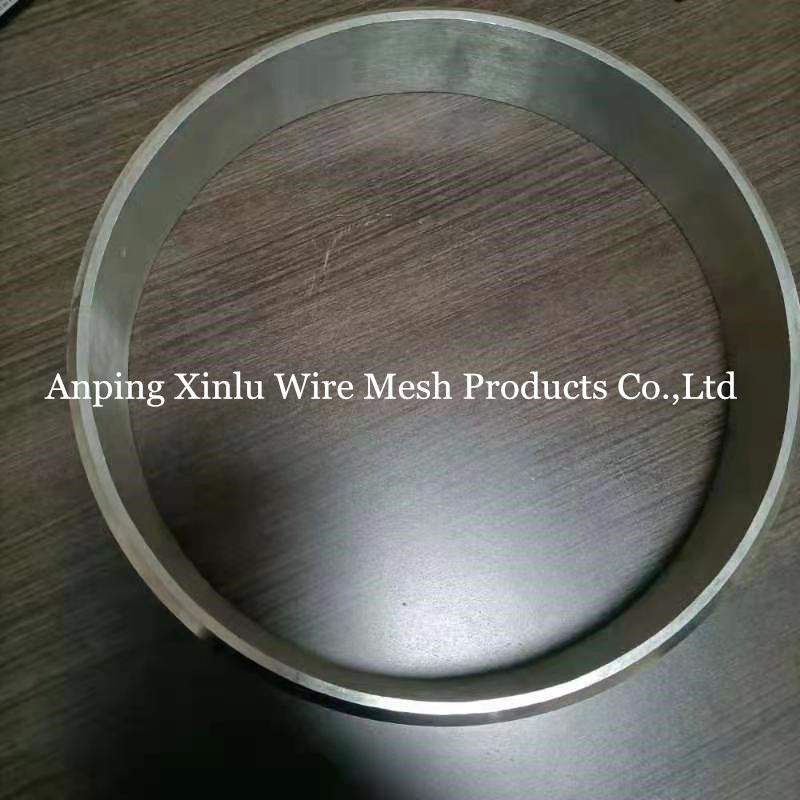

End Connection: Plain Beveled Ends For Butt Welding (welded Ring)or Threaded Male &female Coupling (spiral) Or Flange
Slot Size: 0.05-10.0 Mm
V Profile Wire : 0.76x1.8mm(11SS), 1x2mm(12SS), 1.5x2mm, 1.5x2.5mm(#63), 2x3mm, 2.2x3.5mm(#93), 2.5x4mm, 3x4.6mm(#118), 3x5mm, 3.02x6mm
Roundness(circular degree): Pure Round (no Angles) And With Angles
Standard Length: 2.9m / 5.9m To Fit Container Length
Xinlu Company's V Wire Screen Pipe is made of stainless steel and is ideal for a variety of applications. The profile wire screen pipe is highly customizable, with a range of sizes from 1" to 16" and customizable end connections. It is also certified by FORM E, CO, ISO and SGS, with a minimum order quantity of 10pcs. The price range is from 10-200USD/m, and the slot size range is from 0.05-10.0mm. Profile wire sizes range from 0.76x1.8mm(11SS), 1x2mm(12SS), 1.5x2mm, 1.5x2.5mm(#63), 2x3mm, 2.2x3.5mm(#93), 2.5x4mm, 3x4.6mm(#118), 3x5mm, 3.02x6mm. The roundness can be either pure round with no angles, or with angles. The standard length is 2.9m/5.9m to fit container length. Packaging is available in transparent plastic bag inside, woven bag outside or bubble bag or wooden boxes or pallets or containers. Delivery time is 5-10 days, depending on quantity, and payment terms are T/T or cash. Supply ability is 500pcs/month.
Xinlu Company's V Wire Screen Pipe is an ideal solution for a variety of applications, from industrial to residential. It is durable, reliable, and affordable, with a wide range of customization options to fit your needs. Whether you need a customized v wire screen pipe, profile wire screen pipe, or any other type of screen pipe, Xinlu Company is here to provide you with the highest quality products.
Customization:
V Wire Screen Pipe
Brand Name: Xinlu Company
Model Number: 1", 2", 3", 4-1/2", 5", 6", 6-5/8", 7", 8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", or customized
Place of Origin: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: FORM E, CO, ISO, SGS
Minimum Order Quantity: 10pcs
Price: 10-200USD/m, according to the specification
Packaging Details: Transparent plastic bag inside, woven bag outside or bubble bag or wooden boxes or pallets or container
Delivery Time: 5-10 days, depending on order quantity
Payment Terms: T/T, cash
Supply Ability: 500pcs/month
Features of V Wire Screen Pipe:
- Profile wire screen pipe, Stainless steel screen pipe, Wedge wire screen pipe
- Screen pipe for inside to outside filtration: Inverted Wire Construction: External Circumferential Inverted Wire And Axial Internal Support Rods, Radial Slot Execution, Internal Circumferential Wire(re-rolled: I.C.W): Internal Circumferential Wire With External Axial Support Rods
- Pressure Rating: 150-2000 Psi
- Threaded Type: NPT, BSP, G", STC, Or Customized
- Material: Duplex stainless steel: 2205, 904L
- Wire Diameter: 1-5mm
Support and Services:
V Wire Screen Pipe technical support and service includes:
- 24/7 customer service and technical support
- On-site installation and troubleshooting
- Product guidance and training
- Regular maintenance and technical updates
- Emergency repair services
Packing and Shipping:
Packaging and Shipping for V Wire Screen Pipe:
- Each V Wire Screen Pipe will be packaged in a protective casing.
- The casing will be labeled with the product name, part number, and order number.
- The protective casing will be securely sealed and placed in a sturdy cardboard box.
- The cardboard box will be labeled with the product name, part number, and order number.
- The box will be securely sealed and shipped via a reliable courier.
