Duplex2205 Wedge Wire Spiral Screen Tube OD137mm With Profile Wire Point To The Outside
wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe
Product Quick Details:

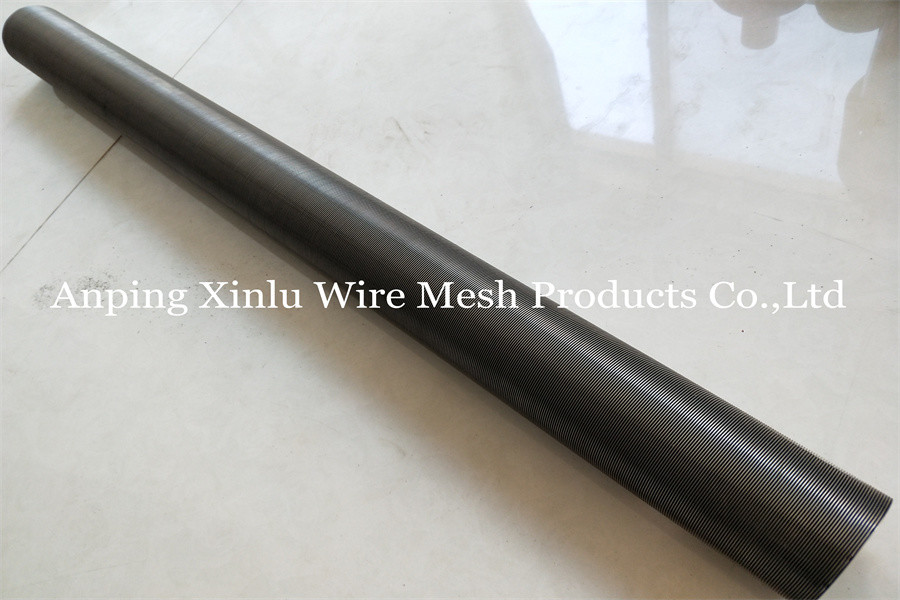

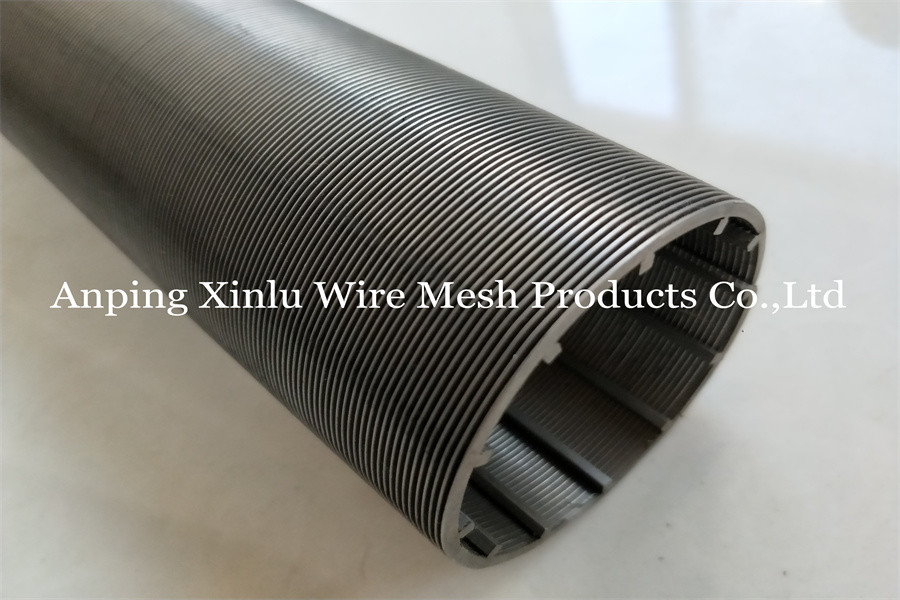

Wedge Wire Screen Tube
1. OD: 137mm
2. Flow gap: 0.5mm
3. Profile Wire: 1.5x2.5mm
4. Support wire: 2x3mm
5. End joints: without
6. Weight: 6.5kg/m
Advantages Wedge Wire Screen Pipe include:
1. The wedge tapered opening becomes progressively wider increasing dewatering efficiency
2. Non plugging,to make sure the smooth circulation
3. Slot sizes ranging form0.05mm to 100mm
4. Durable and capable of carrying heavier loads without support structures
5. One piece construction
6. Wide range of materials
7. Easy to clean,long service life,safe and reliable,low comprehensive cost
Johnson Wedge Wire Screen Pipe (FITO)Range:
| Name | Wedge Wire Screen Tube (FITO) | Material | 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc. |
| Diameter | 25-500mm (customized) | Slot | min 0.05mm |
| Length | 100-3000mm | Ends | Welded rings/Plain beveled ends; Male/female threaded coupling: API STC, PT NPT, BSP, G; Flange ; Closed up, Open ends etc. |
| Usage | Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |

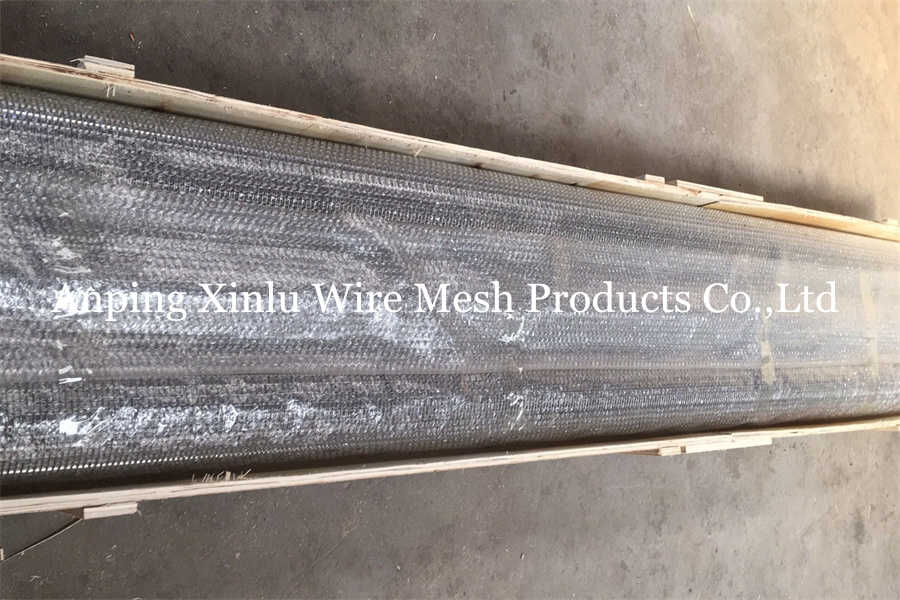

Package: Stainless Steel Wedge Wire Screen Tube
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside

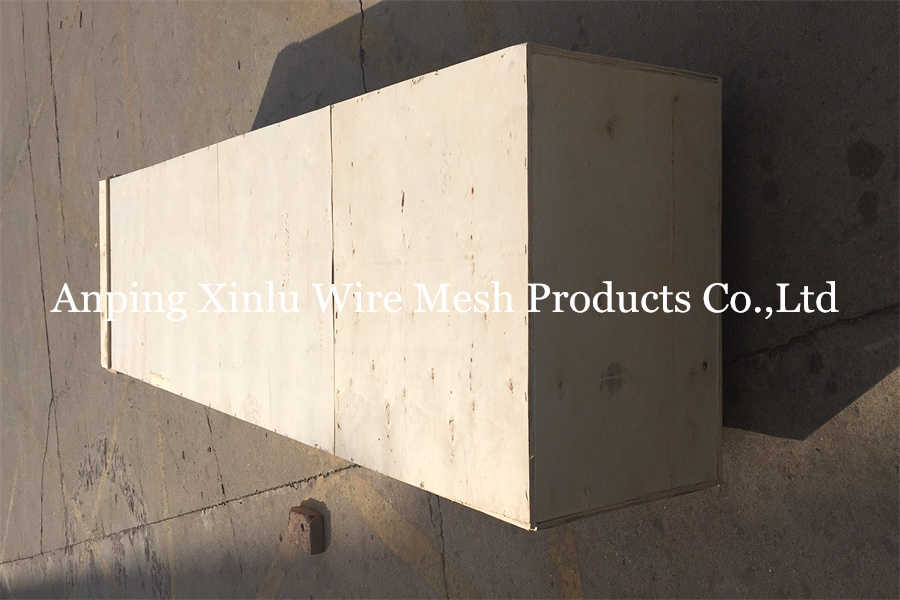

Wooden box
Pallet
Johnson Wire Water Well Screen Pipe Wire Specification
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
| HEIGHT(mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
| SUPPORT ROD | | | | | | ROUND |
| WIDTH(mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2.5--Ø6mm |
| HEIGHT(mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | ---- |
Johnson Wedge Wire Screen Pipe Application
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Xinlu Wedge Wire Screens Package
Product Tags: 137 wedge wire screen pipe, 500micron wedge wire screen tube, Duplex 2205 johnson wedge wire screen
Product Tags:
|
|

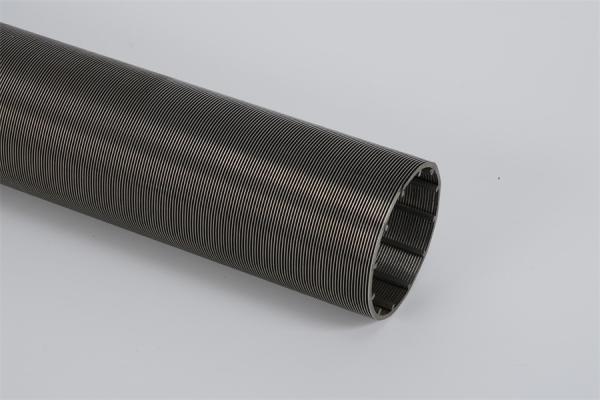

Duplex 2205 Spiral Wedge Wire Screen Pipe OD137mm Point Outside Images
|
