Diameter 273mm X 10ft Stainnless Steel 304 Johnson Wedge Wire Screen Tubes Slot 0.040
wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe
Product Quick Details:

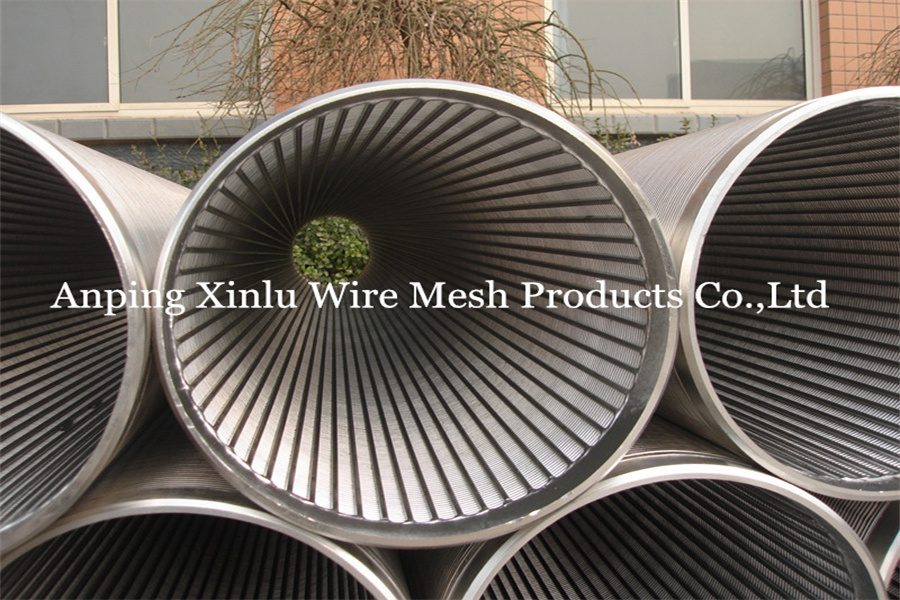

Wedge Wire Water Well Screen Tube
1. Diameter: 10" (254mm) or 10-3/4 "(273mm)
2. Flow gap: 1.0mm
3. Profile Wire: 3x4.6mm (#118)
4. Support wire: 3.8mm
5. End joints: welded ring -- Hight 50mm x T 8mm
6. length: 10ft = 3.048m
7. Weight: 73kg/pcs
8. Qty: 1x40ft container
9. FOB Tianjin 254--320$/pcs
Advantages Wedge Wire Screen Pipe include:
1. The wedge tapered opening becomes progressively wider increasing dewatering efficiency
2. Even gap, Non-magnetic, the gap is not blocked, to make sure the smooth circulation
3. Smooth surface without burrs, brightly
4. Tensile Weight: 39.Ton
5. Collapse Strength: 60bar
6. Easy to clean,long service life,safe and reliable,low comprehensive cost
Johnson Wire Water Well Screen Pipe Wire Specification
sizes
(inch) | OD
(mm) | slot
(mm) | Length
(m) | Tensile
strength | collapse
Strength | wrap wire
vee-shaped wire (Width x height:mm) | support rod
Round wire (mm) |
| 3-1/2 | 88.9 | 1 | 2.9 | >22 | 10.2 | 2.3 x 3.5 | 3.0MMx22 |
| 4-1/2 | 114.3 | 1 | 2.9 | >28 | 11.5 | 2.3 x 3.5 | 3.0MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.0 x 6.0 | 5.OMM×32 |
| 8-5/8 | 219.1 | 1 | 5.8 | >34 | 21.9 | 2.3 x 3.5 | 3.8MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >50 | 38.2 | 3.0 x 4.6 | 4.0MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >60 | 46 | 3.05 x 6.35 | 5.0MMx48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 9 | 2.5 x 4 .0 | 3.8MM×55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >60 | 39.5 | 3.0 x 4.6 | 4.5MMx55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >100 | 48 | 3.2 x 6.0 | 5.0MM×55 |
| 12-3/4 | 323.9 | 1 | 5.8 | >120 | 37.2 | 3.0 x 6.0 | 4.0MMx56 |
| 14 | 355.6 | 1 | 2.9 | >80 | 37.8 | 3.0 x 5.0 | 4.0MMx59 |
| 16 | 426 | 1 | 2.9 | >80 | 37.5 | 3.0 x 5.0 | 4.OMM×64 |
The difference between different material of water well screen pipes
| | Type of water well screen |
| Stainless steel | Galvanized | Silver Painted |
| weight | Stainless steel＞Galvanized＞Silver Painted |
| Surface treatment | Electrolytic polishing Pickling and polishing | Uniform Galvanized surface | Uneven Silver Painted surface |
| Corrosion resistance | powerful | medium | slightly weaker |
| Tensile Strength | powerful | medium | slightly weaker |
| Collapse Strength | powerful | medium | slightly weaker |
| Magnetic | SS201 SS205 SS205B no magnetic Other micromagnetic | magnetic | magnetic |
| service life | Stainless steel＞Galvanized＞Silver Painted |
| price | high | low | lower |
Johnson Wedge Wire Screen Pipe Application
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Groundwater
Architecture & Construction
Waste Water Treatment
Water Well & Oil well
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

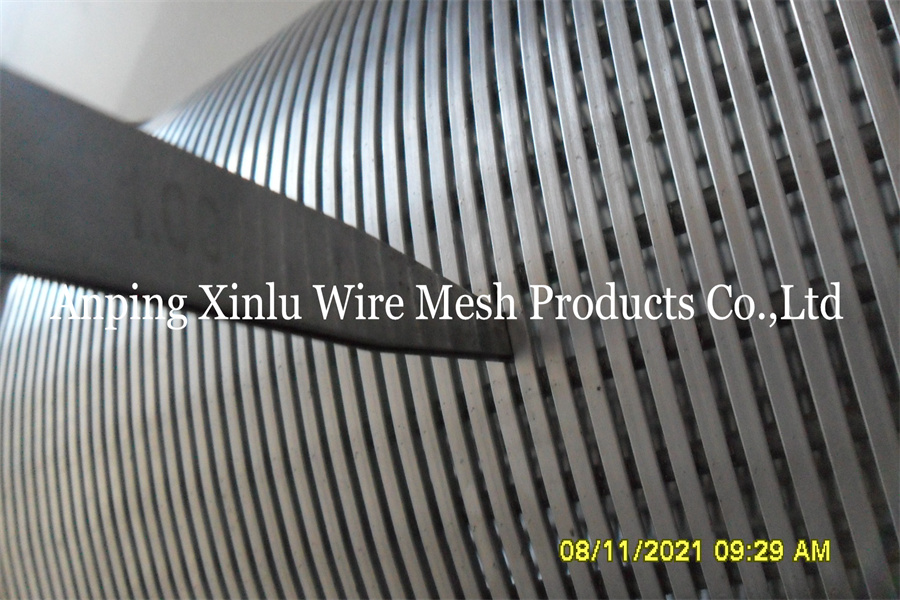

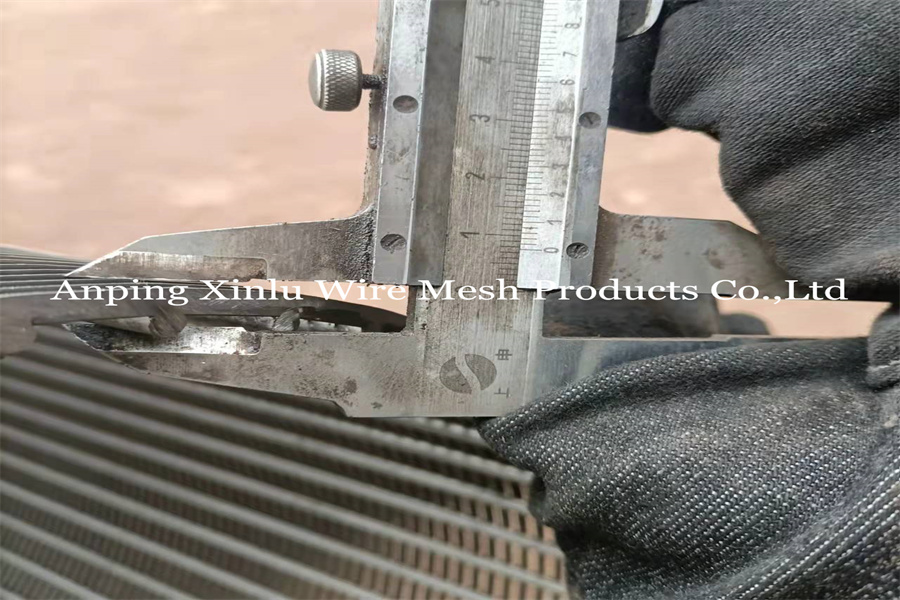

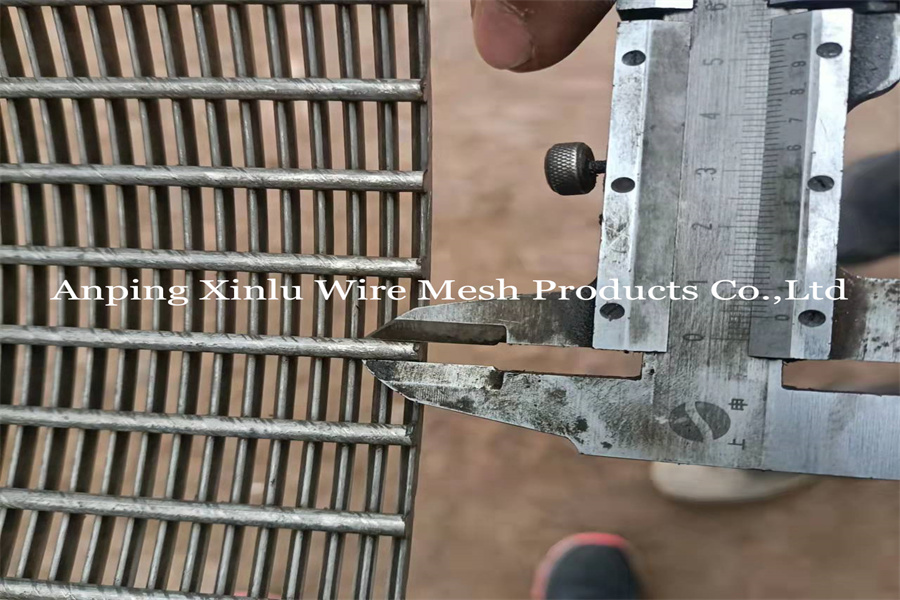

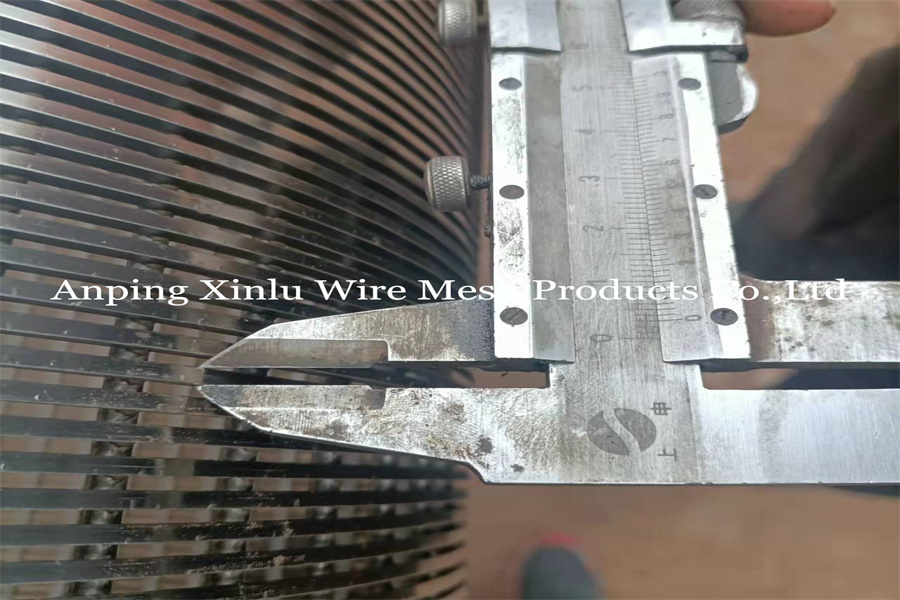

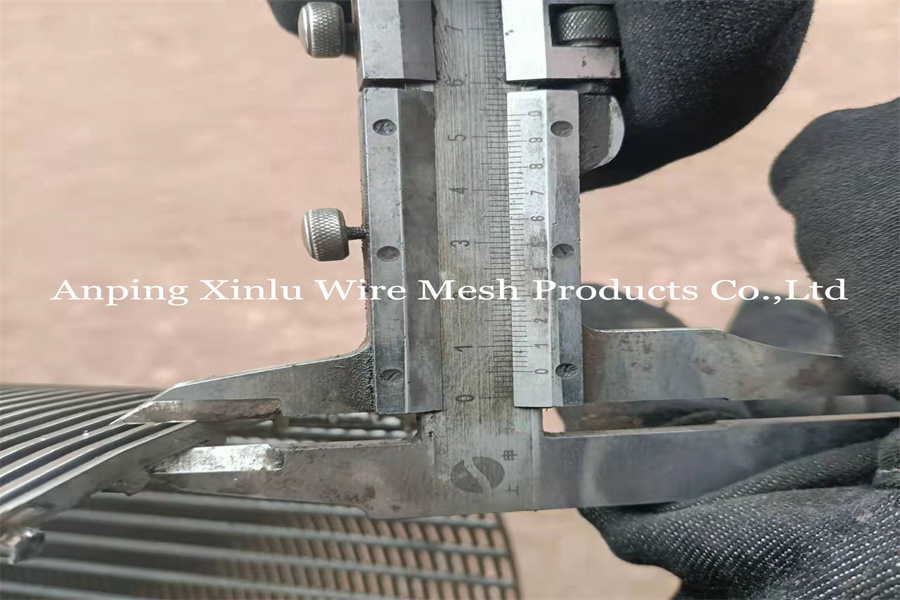

Xinlu Wedge Wire Screen Pipe: Slot, Inside, Profile Wire, Support Wire, Thickness, End connection
Xinlu Wedge Wire Screens Package
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
