OD450x500mm Wedge Wire Cylindrical Screen Professional Reverse Bake Flush Rotary Screen Drum
Wedge Wire Screen Cylinders

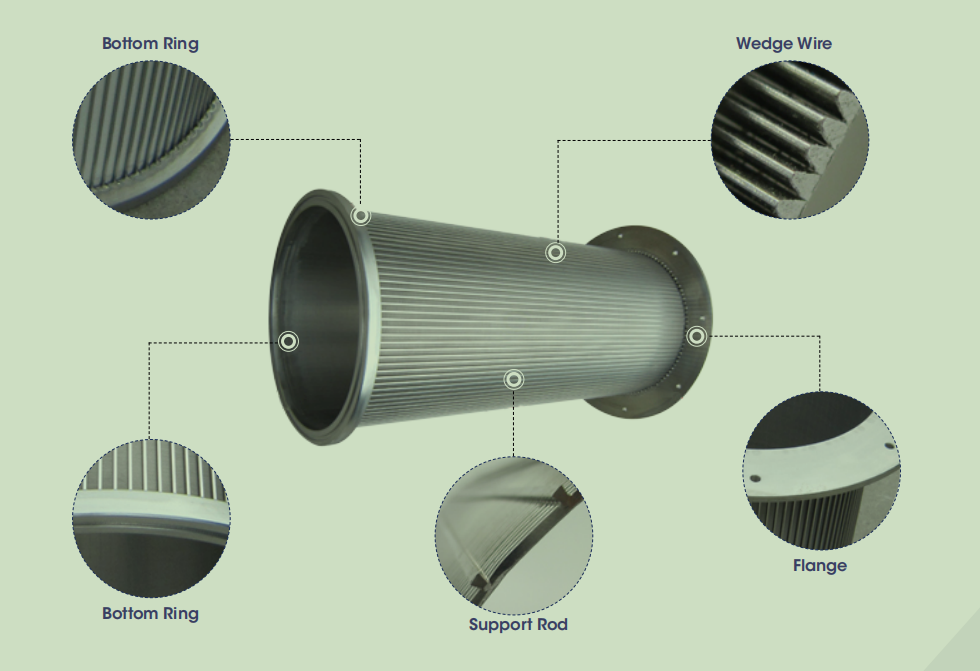

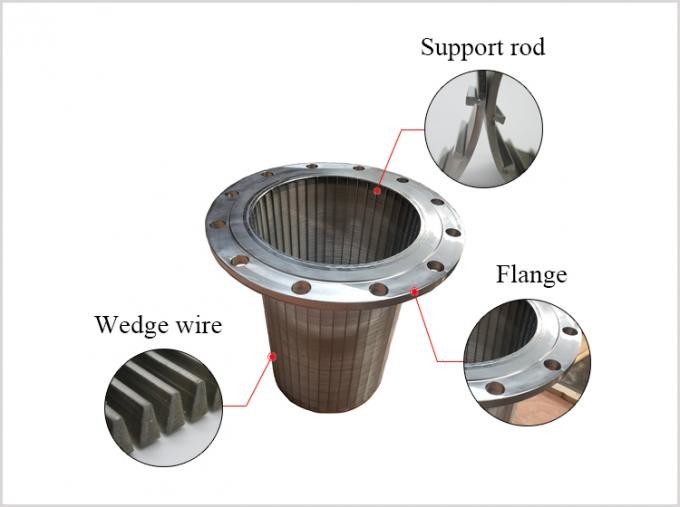

Wedge wire screen cylinders are made bysimultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction. This technology makes it possible to provide welded profile wire screens for applications where high precision of the screen together with highstrength is required.
WELDING TECHNOLOGY WE CAN PROVIDE:
+ optional distance between support wires
+ very precise and repeatable slot
+ screens in accordance to special requests of our clients
Wedge Wire Screen Cylinders Standard Tolerances
Diameter ±0.1 mm
Length ±0.1 mm
Slot opening ±0.030 mm
Max. deviation ±0.100 mm
Screen height ±0.1 mm
Notes: For other tolerances, please check availability.
+ Slot: ≥ 0.015 mm
+ Max. Length: 6000 mm
+ Min. Diameter: 25 mm
+ Max. Diameter: 1200 mm
Wedge Wire Screen Cylinders Industry Use:
Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.

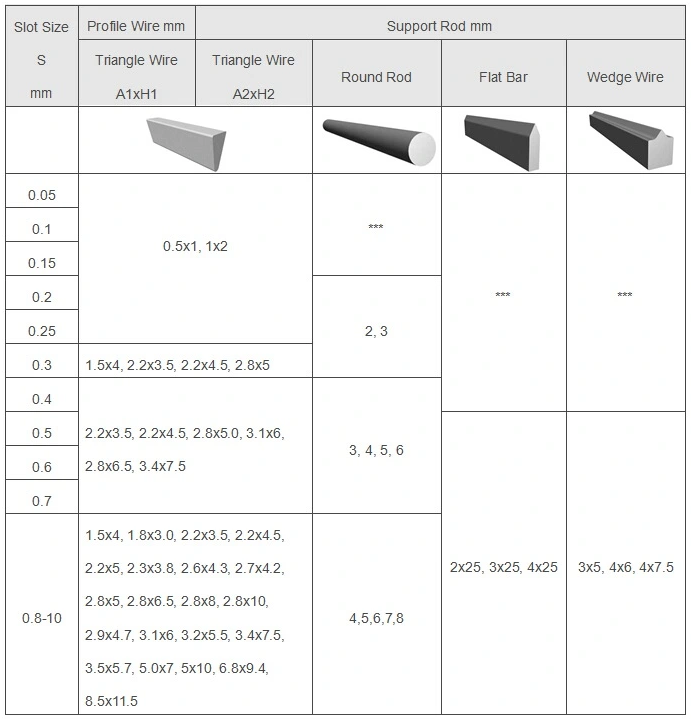

SIZES OF THE WIRE AND ROD
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Special specification can be made according to your need.

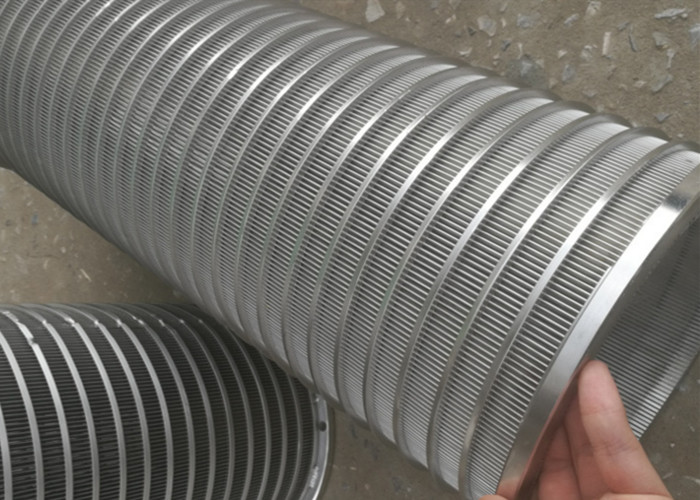

Pictures:
Package:
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
