Joint Type Wedge Wire Support Grids For Ion Exchangers
Wedge wire screen panel, flat v wire panel, Johnson screen plate, profile wire screen panel, seive bend screen, static screen, wedge wire grating, support grids
Support grids are used for media retention, which are widely used in hydrogenation reactors, desulfurization reactors, molecular sieves, gas desulfurization reactions and other respiratory systems due to their strength, durability and flow rate. Support grids are made of specially welded wedge wires and steel bars so that it can resist collapse or bending easily even in hydrocracking and desulfurization reactors.
Catagory of wedge wire support grid:
---whole type support grid

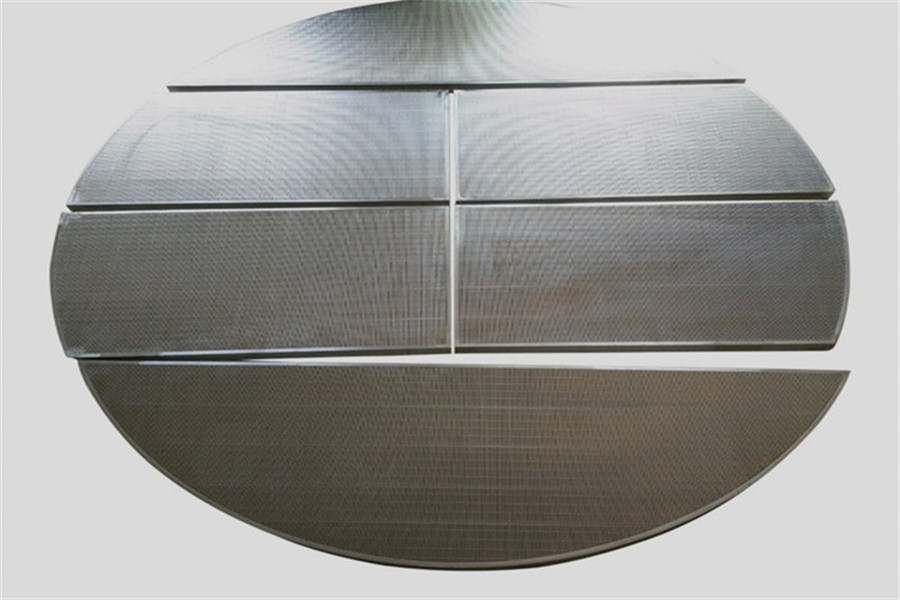

---joint type support grid: The Joint type support grid can be divided into different parts and in different shapes
---round space on the center of support grid
---Rectangular space on the center of support grid
WEDGE WIRE SUPPORT GRID BENEFITS
---Smooth surface
---High open area
---Excellent capacity
---Temperature resistance
---Corrosion and rust resistance
---High strength
---Long service life
---No-clogging
---Joint type for easy installation and transportation
WEDGE WIRE SUPPORT GRID APPLICATION
Support grids are very important to provide uniform flow collection. Support grids can be used in hydrotreaters, desulfurizers, molecular sieves, gas sweeteners, ion exchangers and other absorption system
| Wedge Wire Support Grids |
| Slot size (mm) | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. |
| Material | Stainless steel 205, 304, 304L, 316L ,321, Low carbon, Duplex stainless steel, etc.) |
| Length | Upto 6 meters |
| Width | customized |
| Frame | 3x10mm, 5x20mm, customized |
| Other sizes available on request. |
| Advantage | Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. |

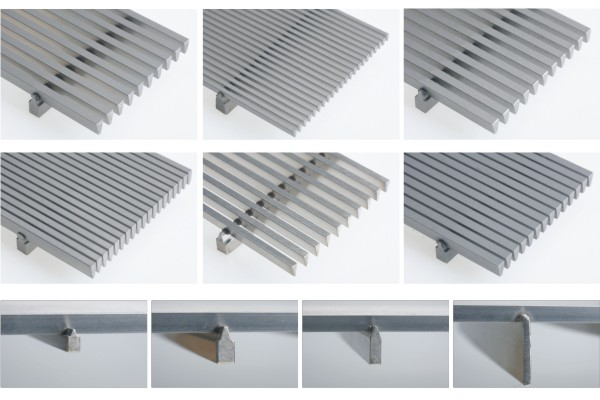

Profile Wire of Wedge Wire Screen Panel
| Profile Wire | Width | Height | Material |
| 10SR | 0.75mm | 1.5mm | 304 316 316L,etc |
| 12SR | 1.0mm | 2.0mm | 304 316 316L,etc |
| 18SR | 1.5mm | 2.9mm | 304 316 316L,etc |
Support Wire of Wedge Wire Screen Panel
| Profile Wire | Width | Height | Material |
| Q22 | 2.0mm | 2.3mm | 304 316 316L,etc |
| Q25 | 2.0mm | 3.0mm | 304 316 316L,etc
|
Custom Wedge Wire Screen Solutions To Meet Your Specific Filteration Demands
wedge wire screen products are designed to provide solutions for a wide range of markets across the world.
We have many years of experience in every field of application. Whether you fit one of our major industries or a smaller, niche market, we have the manufacturing expertise and flexibility to provide quality materials for diverse and demanding applications

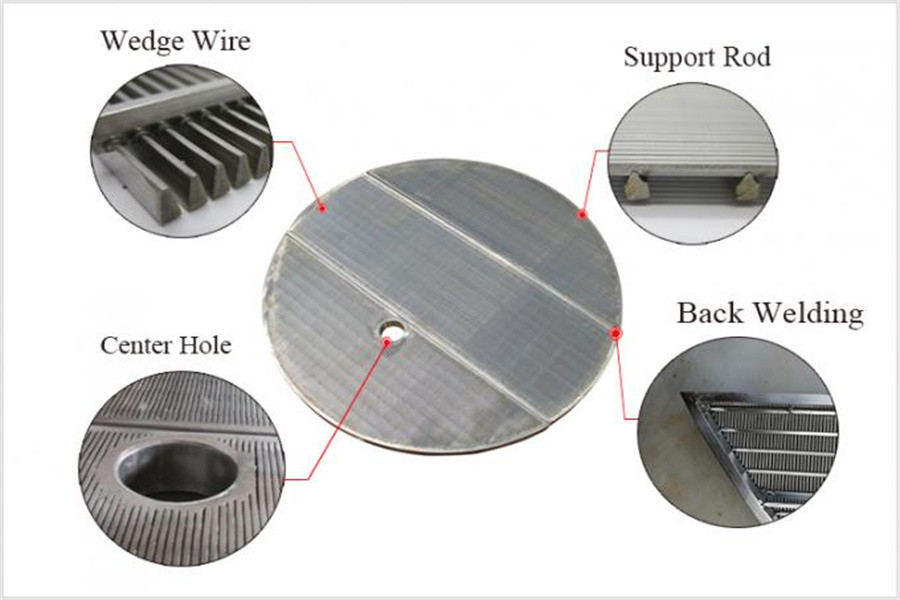

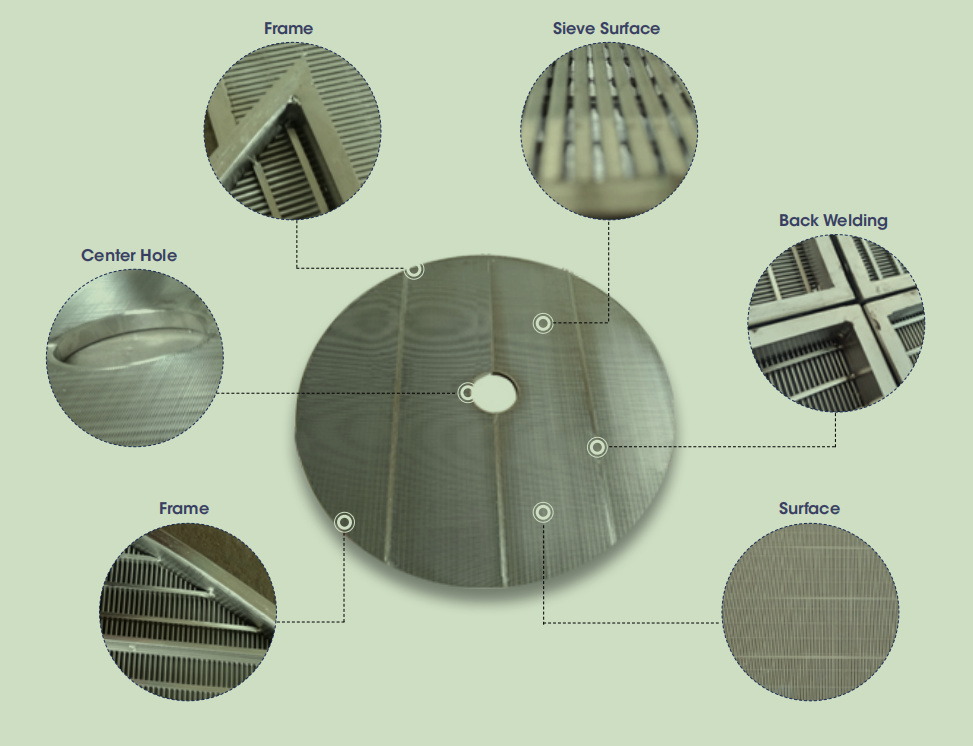

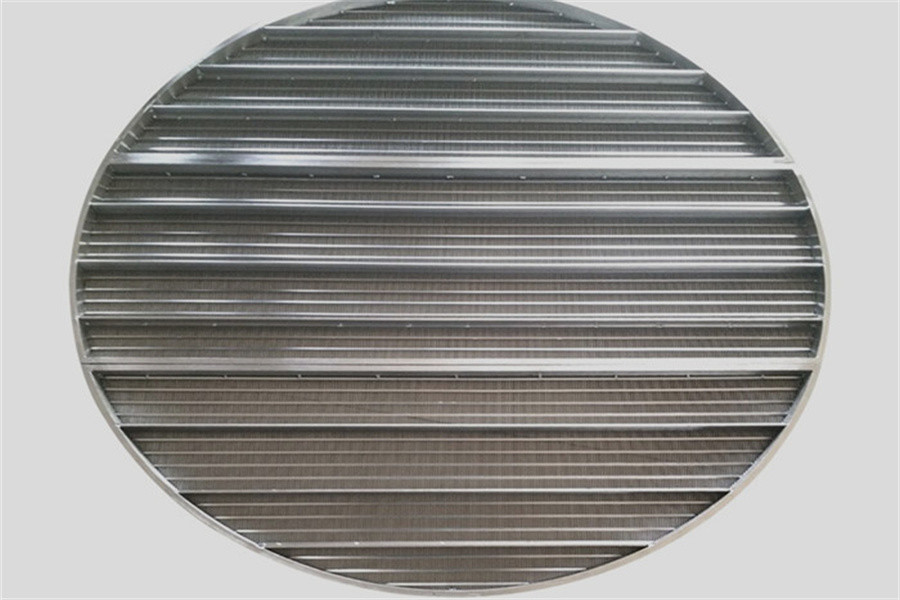

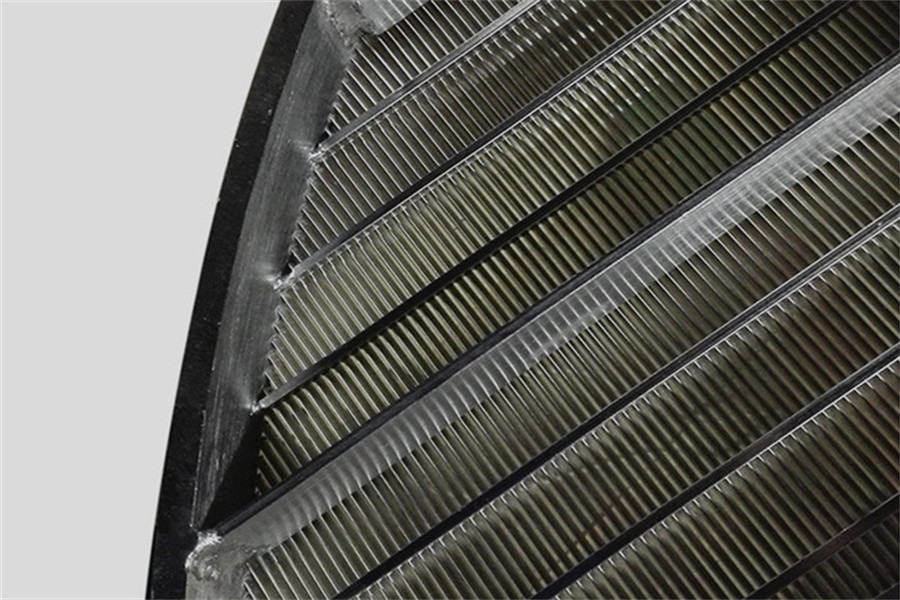

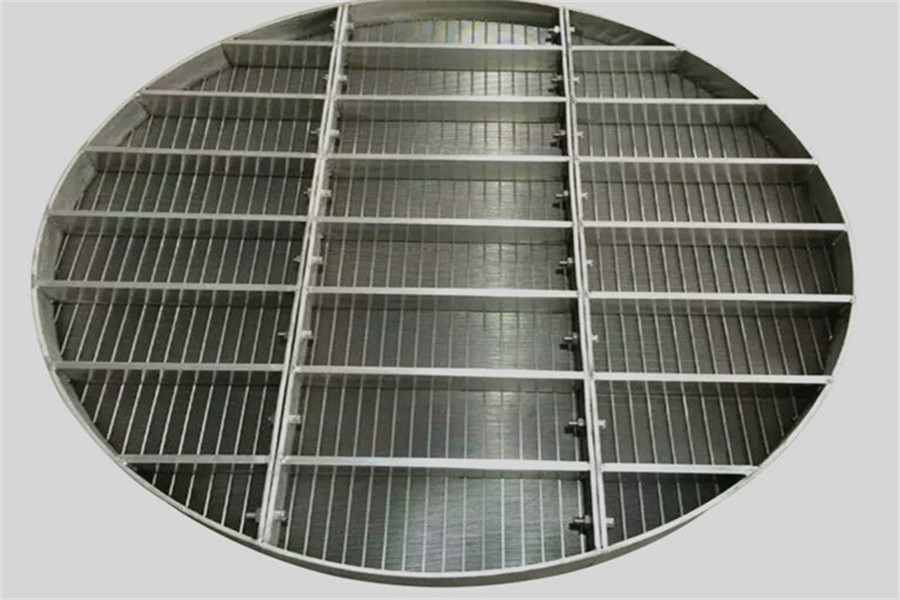

Johnson Wedge Wire Support Grid Photos
