50 Micron Johnson SS316L Wedge Wire Static Screen Panels For Beer Filter
Wedge wire screen panel, flat v wire panel, Johnson screen plate, profile wire screen panel, seive bend screen, static screen, wedge wire grating, support grids
Wedge Wire Static Screen Panel Quick Details:
1. Material: ss316L
2. Slot/ gap / aperture: 0.05mm = 50micron
3. profile v wire: 1x2mm
4. support wire: 2x3mm
5. weight: approximately 8kg/m2
Wedge wire screen panels are manufactured by welding profile wires to support rods at an angle of 90 degrees. A precise slot is achieved by applying modern welding technology on profile wires and support rods. The result is a rigid screen construction capable of withstanding heavy loads with a great resistance.
| Wedge Wire Screen Panel |
| Slot size (mm) | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. |
| Material | Stainless steel 205, 304, 304L, 316L ,321, Low carbon, Duplex stainless steel, etc.) |
| Length | Upto 6 meters |
| Width | customized |
| Frame | 3x10mm, 5x20mm, customized |
| Other sizes available on request. |
| Advantage | Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. |
INNOVATIVE SOLUTIONS OF TECHNOLOGY ALLOW:
+ to control quality of welding.
+ to use various profile wires in one screen.
+ to design various slot sizes in one screen
+ to design various support rods in one screen
+ to design various distances between supports in one screen
+ to gain superior flatness of sieves
(no corrugation of working wires between support rods)
+ Slot: ≥ 0.025 mm
+ Maximum size: 3500 × 4000 mm
Profile Wire of Wedge Wire Screen Panel
| Profile Wire | Width | Height | Material |
| 10SR | 0.75mm | 1.5mm | 304 316 316L,etc |
| 12SR | 1.0mm | 2.0mm | 304 316 316L,etc |
| 18SR | 1.5mm | 2.9mm | 304 316 316L,etc |
Support Wire of Wedge Wire Screen Panel
| Profile Wire | Width | Height | Material |
| Q22 | 2.0mm | 2.3mm | 304 316 316L,etc |
| Q25 | 2.0mm | 3.0mm | 304 316 316L,etc
|

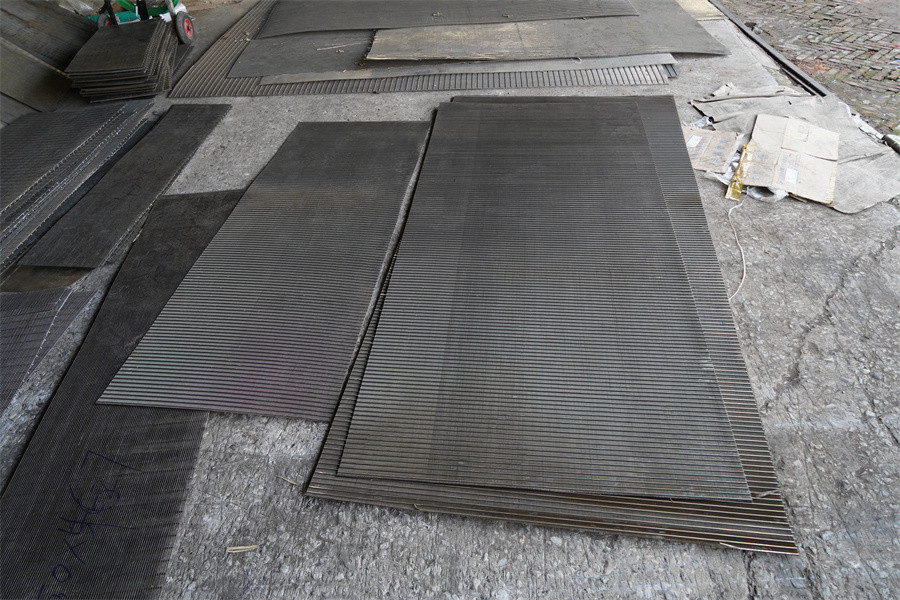

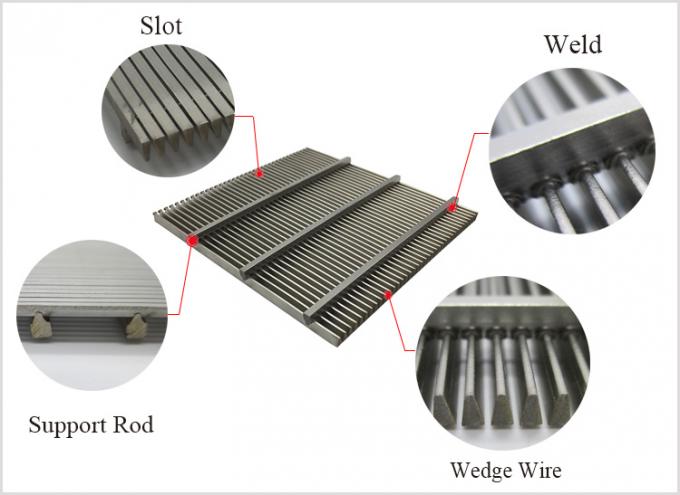

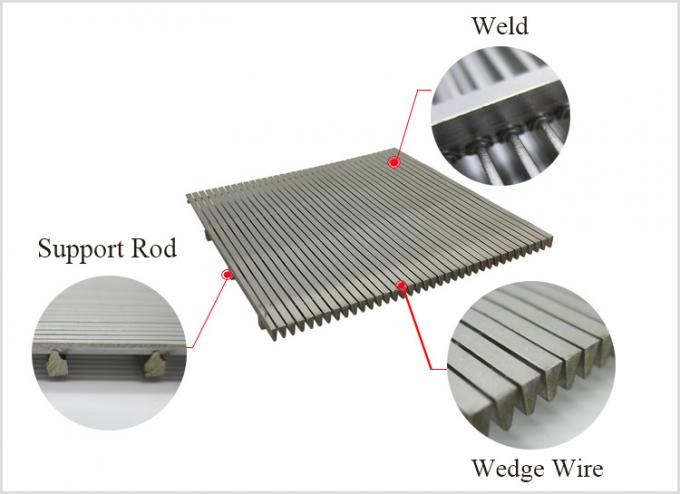

WEDGE WIRE SCREEN PANEL STRUCTURE
TECHNICAL PARAMETERS
Surface profile: The v-shaped profile helps reduce the risk of screen plugging associated with particles becoming lodged between wires, while providing self-cleaning action and increasing backwashing efficiency.
Support profile: The support profile of wedge wire screen can be triangle wires, flat bars and wedge wires to provide strong
Wedge Wire ScreenPanel BENEFITS
Flat surface
Excellent filtering performance
Accurate distance between supporting profiles
Welded production process for solid and strong structure
Good mechanical properties
High strength
High load capacity
Corrosion and rust resistance
Temperature resistance
Chemical stability
Custom Wedge Wire Screen Solutions To Meet Your Specific Filteration Demands
wedge wire screen products are designed to provide solutions for a wide range of markets across the world.
We have many years of experience in every field of application. Whether you fit one of our major industries or a smaller, niche market, we have the manufacturing expertise and flexibility to provide quality materials for diverse and demanding applications
