6-5/8" Continuous Slot Vee Wire Water Well Screen For Sand Control
Sand control screen is also called Water wire screen, wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, oil well screen, continuous slot screen.
Continuous Slot Vee Wire Water Well Screen Introduce:
Continuous Slot Vee Wire Water Well Screens are received by simultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction.
This technology allows to provide welded profile wire screens for applications where high precision of the screen together with high strength is required.
Continuous Slot Vee Wire Water Well Screen Characteristics:
1. The application of trapezoidal wire, the Formation of Vee-shaped openings between the slots of continuous slot vee wire water well screen. The design works more efficiently than other products and ensures smooth water filtration.
2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire arranged in a circular manner, which ensures the opening area of the continuous slot vee wire water well screen and no obstruction, and avoids the high-density accumulation of sediment, which provides a guarantee for improving the production efficiency and prolongating the service life of the filter.
3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.
4. Longitudinal arrangement of supporting wire and continuous slot form of screen tube designed according to actual demand make the product have higher compression performance.
Sand control well screen pipe Details:
- Material: stainless steel wire or galvanized wire.
- Surface profile: triangle wire.
- Support profile: triangle wire, round bar and wedge wire.
- Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
- Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 20"
- Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
- Maximum collapse strength: 150 bar.
- Maximum tensile strength:40 tons.
- Connection type: Bevel welded rings; male/female threaded coupling.
- Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
- Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
-
Sand control well screen pipe Specification:
| Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tensile Strength | Collapse Strength | Wrap wire Vee-shaped wire(mm) (Width x height) | Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2x3.5mm | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2x3.5mm | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2x6.0mm | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3x3.5mm | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0x5.0mm | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2x6.0mm | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2x3.5mm | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0x4.6mm | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2x6.0mm | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0x5.0mm | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0x5.0mm | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0x5.0mm | ø4.0MM×54 |

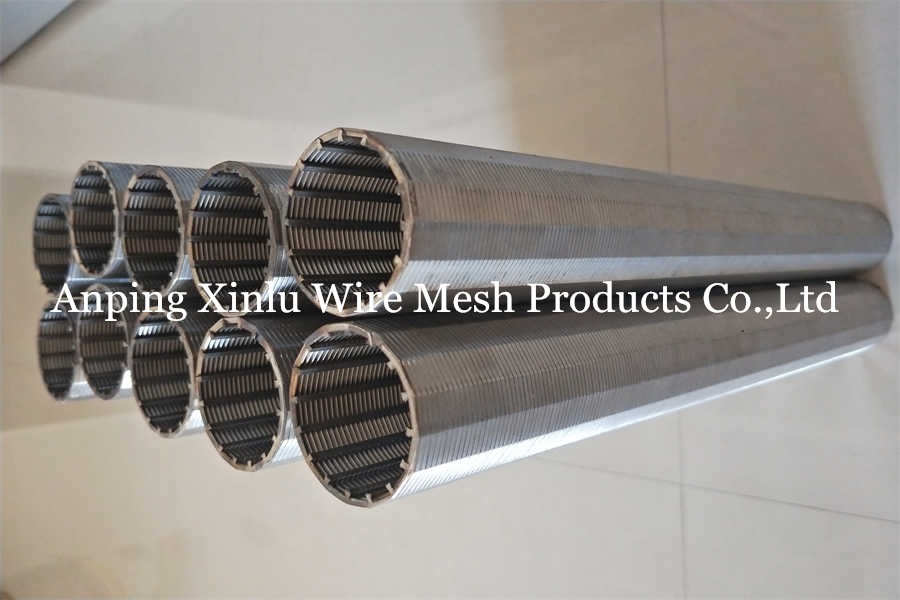

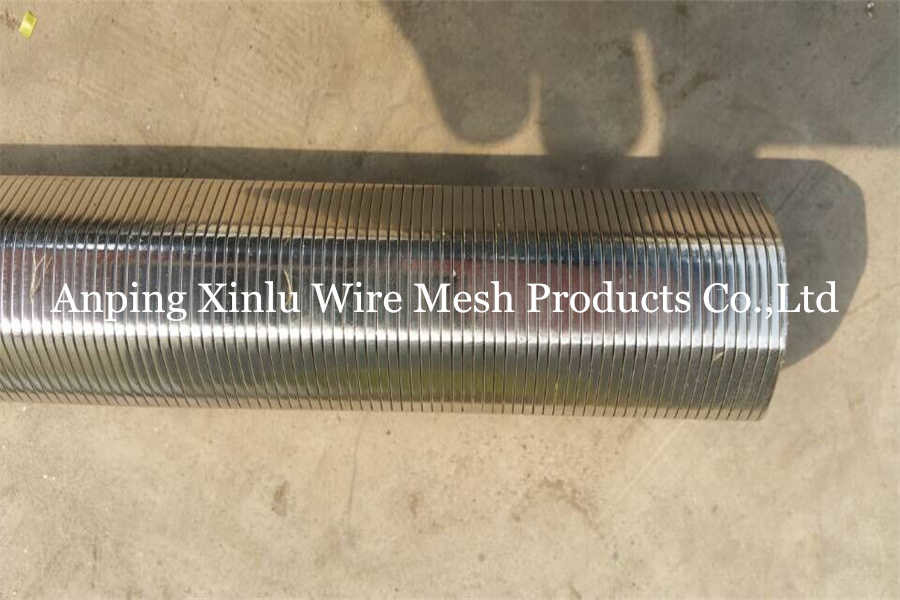

Sand control well screen pipePhotos and Package:
