Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

Name: Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Brand: Anping XinLu Wire Mesh Products Co.,Ltd
Price: 1 USD

Quality Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings wholesale

Brand Name : Anping XinLu Wire Mesh Products Co.,Ltd

Model Number : XL- V Wire Screen Pipe - 037

Certification : ISO

Place of Origin : Anping County, Hebei Province, China

MOQ : 4pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 800pcs / 15days

Delivery Time : 5-7days

Packaging Details : wooden, pallet

Filter Name : Johnson V Wire Screen Pipes

Material : Low Carbon Galvanized

long : 2900mm

Diameter : 88.9mm

V Wire : 2.3x3.5mm

Round Support rod : ø3.0mm

Surface : Glavanized, or painting silver

Usage : In water well for Sand Control

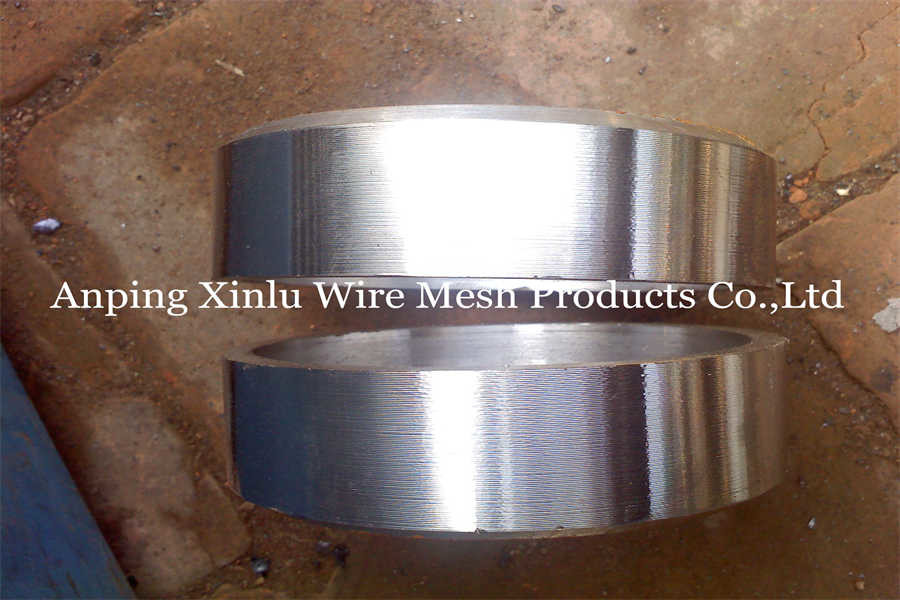

End Joint : Bevel welded rings

Feature : Corrosion Resistance

Welded type : v wire wrapped welded

tag : 3-1/2" v wire screen pipe ; galvanized v wire screen pipe ; low carbon galvanized water wire screen

Contact Now

3-1/2" Low Carbon Galvanized Johnson V Wire Screens For Sand Control

Johnson V Wire Screen, also called wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, johnson v wire screen pipe, johnson v wire screen tube, stainless steel filter screen, v wire strainer pipe, v wire screens, v wire slot tube, wound screen, slotted screen.

Johnson V Wire Screen Pipe are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.

Johnson V Wire Screen Pipe Sizes:

Material: stainless steel wire or galvanized wire.
Surface profile: triangle wire.
Support profile: triangle wire, round bar and wedge wire.
Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
Maximum collapse strength: 150 bar.
Maximum tensile strength:40 tons.
Connection type: Bevel welded rings; male/female threaded coupling.
Wire Size: 1x2mm, 1.5x2mm, 1.5x2.5mm, 2.2x3mm, 2.3x3.5mm, 3x4.6mm, 3x5mm, 3x6mm, 4x7mm etc. Also can make other sizes as your request.
Support rods size:ø2.5mm, ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.

Johnson V Wire Screen Pipe Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH(BAR)	TENSILE STRENGTH(TON)	WRAP WIRE (WIDTH*HEIGHT)(MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	4.0MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.2MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.2MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.8MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.2MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.2MM/59

Johnson V Wire Screen Pipe Features:

Can filtration 20 micron particles.
Wide ranges of sizes and end types.
Large open areas for high filtration efficiency.
Non-clogging and plugging performance.
Stainless steel materials OR Low carbon galvanized materials for long service life.
Easy cleaned and low maintenance.

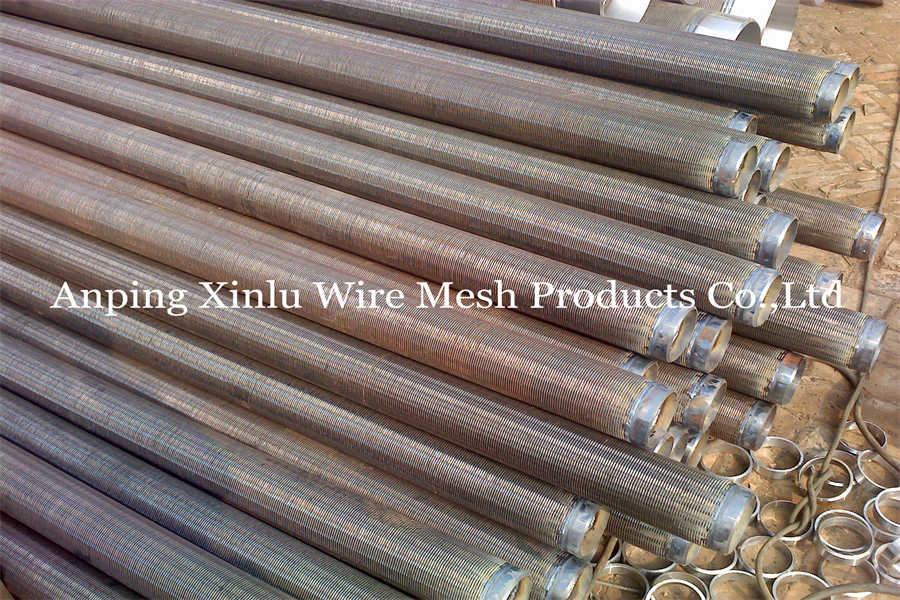

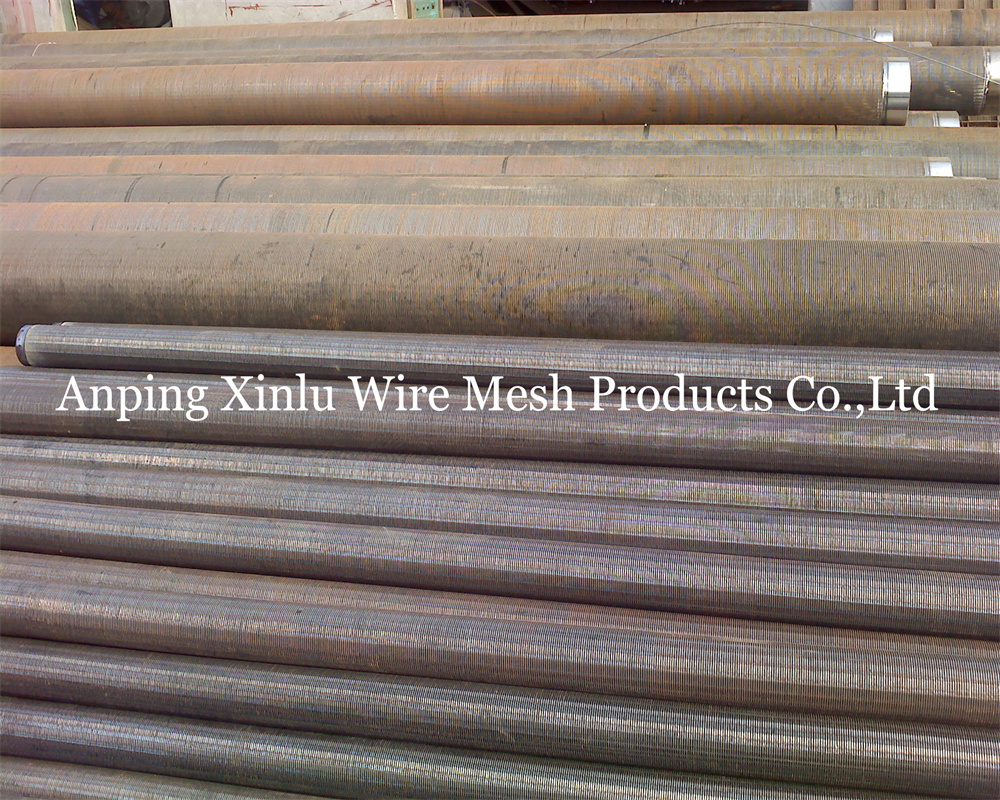

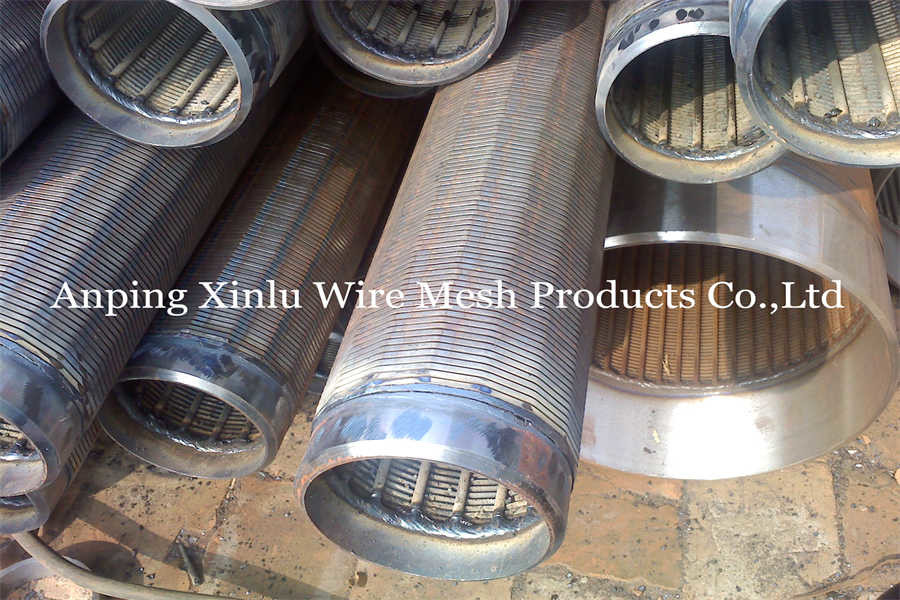

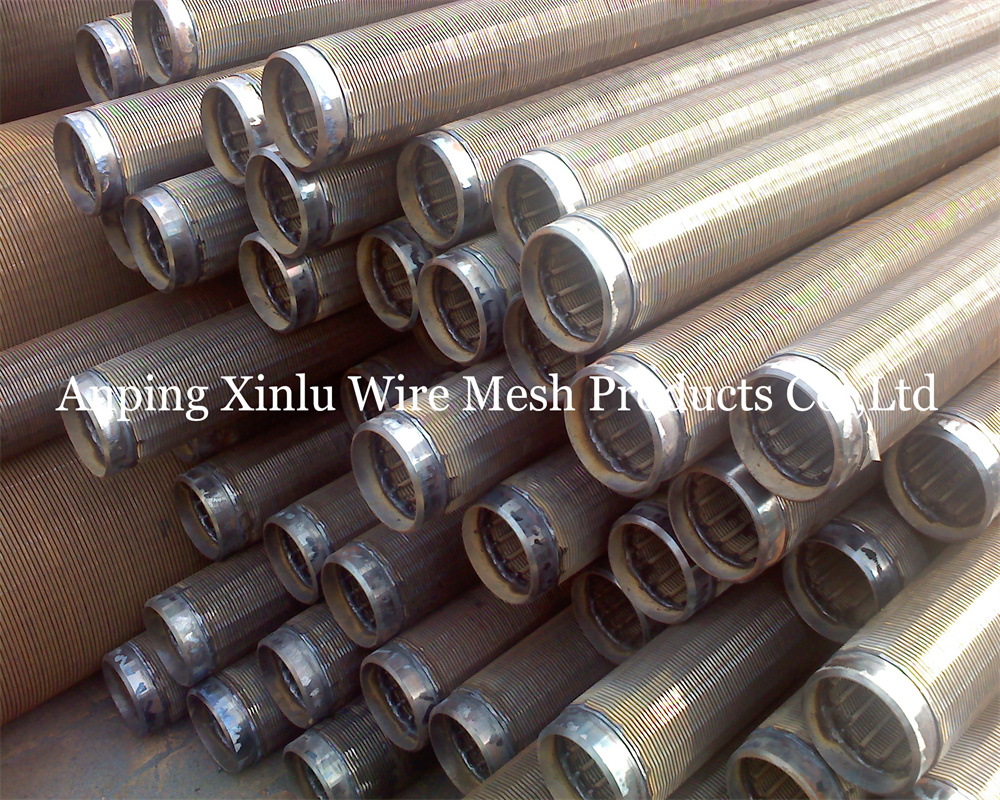

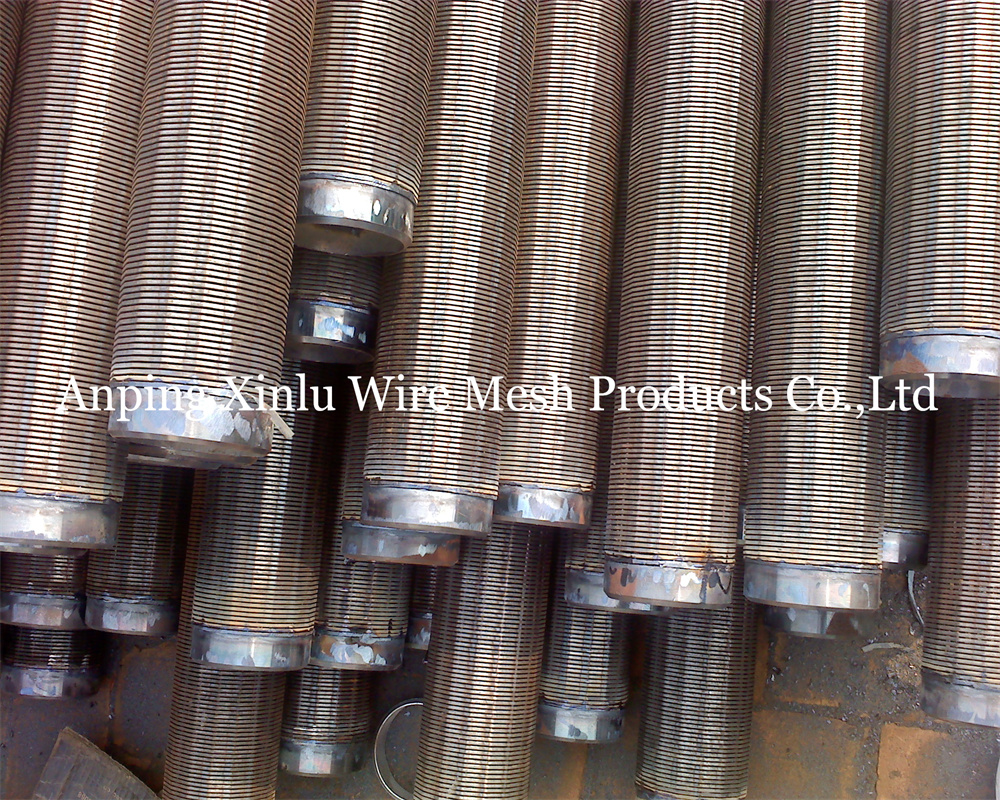

Johnson V Wire Screen Pipe Pictures:

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

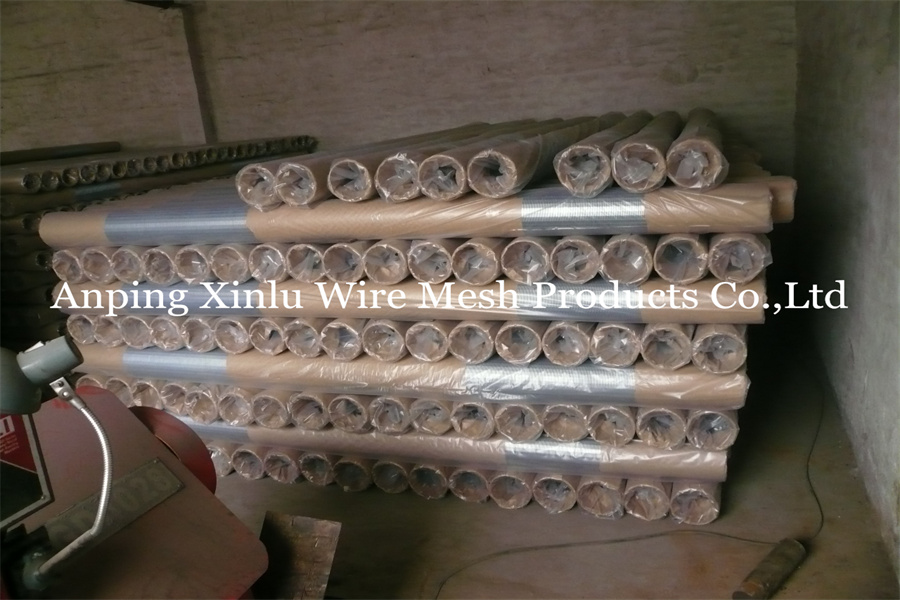

Johnson V Wire Water Wire Screen Pipe Package

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
