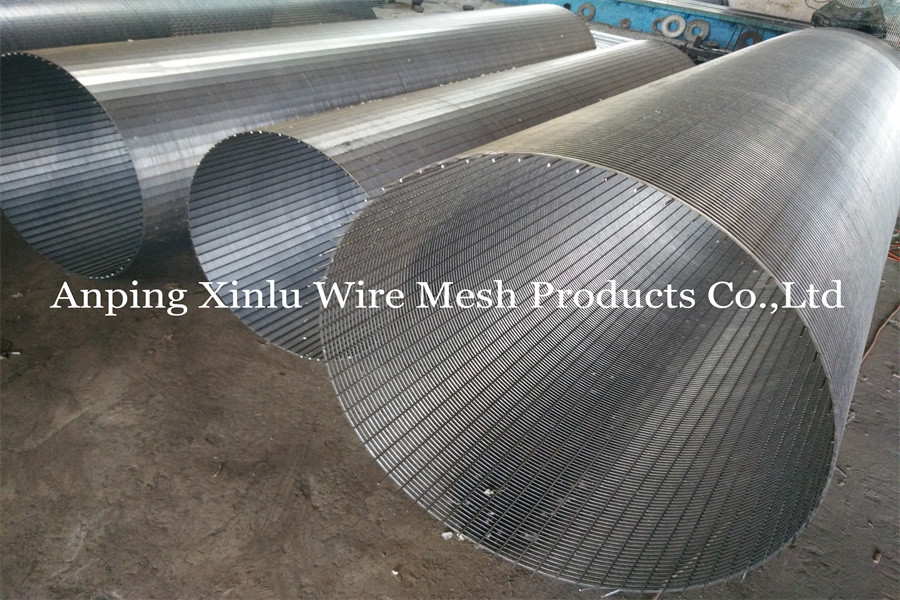

Ss 304 Slot 40 Diameter 455mm Wedge Wire Screen Pipe 3900mm Length
stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
Product Quick Details
1. Material: Stainless steel 304: or according to clients request 201/304/304L/316/316L/321 etc
2. Opening / Slot: 1mm
3. Length: 3.9m
4. End connection: Welded rings
5. Diameter: 455mm
6. Wire size: 1x2mm, 1.2x2mm, 1.5x2mm, 1.8x2.5mm, 2x3mm, 2.3x3.5mm, 3x4.6mm, 3x5mm
Customized Stainless Steel Well Screen, Industrial Welded Wedge Wire Screen Flow type
Customized Stainless Steel Well Screen, Industrial Welded Wedge Wire Screen
Well depths :100 m, 200 m, 350 m & 600 m.
Advantage
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
Water Well Screen Pipe Specification List:
SIZE
(INCH) |
O.D
(MM) |
SLOT
(MM) |
LENGTH
(M) |
COLLAPSE
STRENGTH
(BAR) |
TENSILE
WEIGHT
(TON) | WRAP WIRE
(WIDTH*HEIGHT)
(MM) | RODS
(MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | >22 | 10.2 | 2.3x3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | >28 | 11.5 | 2.3x3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3x3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.3x3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2x6.0 | 6.0MM/32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.3x3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 3.0x5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.2x6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.3x3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 3.0x5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.2x6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | >120 | 37.2 | 3.0x5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | >80 | 37.8 | 3.0x5.0 | 4.0MM/59 |
--------------------------------------------------------------------------------------------------------------
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
Product Tags:
|
|
Ss304 vee Shaped Wedge Wire Screen Pipe Slot 40mm Images
|
