Slot 0.25mm Equipment For Filtering Or Purifying Water Filter Wedge Wire Water Well Screen Pipe
stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
Angular Filter Element / Wedge Wire Screen / Wedge Wire Screen for Angular Filter
Material: Stainless Steel wire (SS205B, 304, 316 ,etc) and Low Carbon Galvanized wire(LCG), Mild steel wire, Iron wire
Shape: Tube/pipe
Plate/piece /Flat panel
Weaving: Vee Wire Wrapped Full Welded
Wedge Wire Water Screen Filter Pipe Uses
| | |
| Specifications | Wedge wire, slot size, support wire, support pitch sizes, screen thickness all can be customized as per your request. |
| Deep processed | Wedge Wire Screen Panel
Wedge Wire Screen Pipe& Cylinder
Wedge Wire Screen Basket
Wedge Sieve Bend Screen
Wedge Wire lateral Screen pipe
Wedge Wire strainer nozzle
Wedge Wire rotary drum Screen |
| Features | 1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body
5. High corrosion resistant;
6. Long-use time;
7. Easy-cleaning;
8. Rust resistant;
9. Non-clogged |
| Applications | water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control Groundwater Pump Filter Motor Filter Dewatering Waste water-treatment water well drilling oil well drilling mineral processing, refining & petrochemical and other areas |
Equipment For Filtering Or Purifying Water Filter Wedge Wire Water Well Screen Pipe Specification
| Diameter | (inches) | ID | (mm) | OD |
| (mm) | Weight | (kg/m) | Collapse* | (bar) |
| 2 | 3/8 | 50 | 60,3 | 3,4 |
| 97,2 | 3 | 1/2 | 78 | 88,9 |
| 4,2 | 29,9 | 4 | 88 | 101,6 |
| 5,7 | 66,6 | 4 | 1/2 | 101 |
| 114,3 | 6,7 | 46,5 | 5 | 114 |
| 127,0 | 7,4 | 33,8 | 5 | 1/2 |
| 127 | 139,7 | 9,5 | 64,3 | 6 |
| 5/8 | 156 | 168,3 | 15,0 | 77,0 |
| 7 | 164 | 177,8 | 16,0 | 65,1 |
| 7 | 5/8 | 177 | 193,7 | 17,6 |
| 50,2 | 8 | 5/8 | 205 | 219,1 |
| 18,7 | 48,7 | 9 | 5/8 | 230 |
| 244,5 | 26,2 | 39,2 | 10 | 3/4 |
| 256 | 273,1 | 27,8 | 42,6 | 12 |
| 3/4 | 305 | 323,9 | 34,6 | 33,2 |
| 14 | 336 | 355,6 | 37,6 | 25,0 |
| 16 | 387 | 406,4 | 42,9 | 16,6 |
| 18 | 436 | 457,2 | 47,6 | 11,6 |
| 20 | 484 | 508,0 | 53,9 | 8,4 |
| 24 | 585 | 609,6 | 63,4 | 4,8 |
| 30 | 730 | 762,0 | 92,0 | 2,5 |
| 32 | 780 | 812,0 | 100,0 | 2,0 |
| Slot Range | 30 micron to 3000 micron (Tolerance:+-5 micron) |
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.8x2.5 2x3 | 2x3 2x4 3x5 3x6 3x10 4x7 | 2x4 3x5 3x6 3x10 4x7 5x6 | 3x5 3x6 3x10 4x7 5x6 5x8 |
| End Finishing | Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
| Note | Customized According To Requirement |
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet
---------------------------------------------------------------------------------------------------------------
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
Product Tags:
|
|

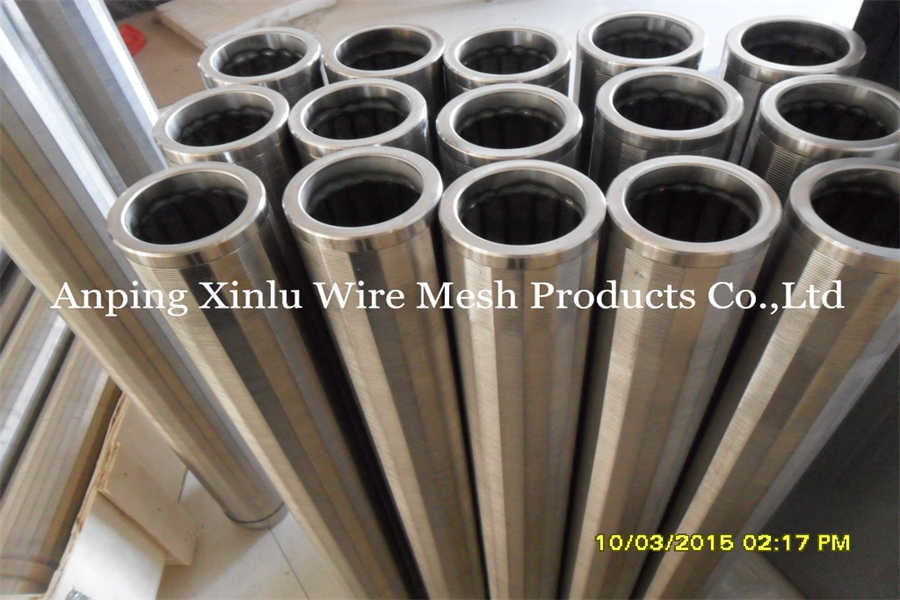

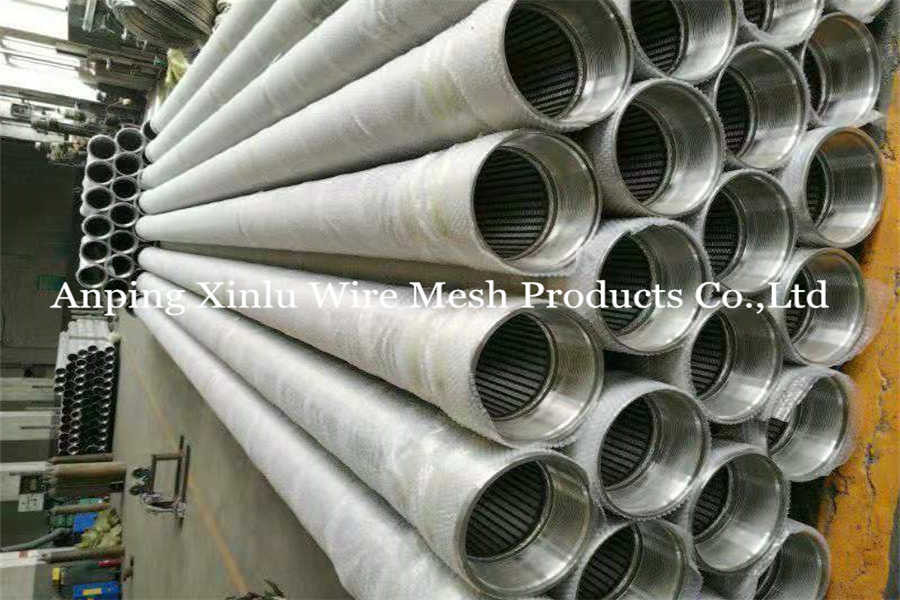

Slot 0.25mm Wedge Wire Screen Pipe For Filtering Purifying Filter Element Images
|
