89mm stainless steel 304 Continuous Slot Wedge Wire Well Screen Pump Filter Pipe
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens
Product Continuous slot well screen, wire screen, Johnson screen
Slot Size(mm) 0.10, 0.15, 0.2, 0.25, 0.30-3, also achieved upon customer request.
Material Low Carbon ,Low Carbon Galvanized steel (LCG), Stainless Steel( 304,etc.)
Lengths up to 6 meters
Diameter 89 mm to 1200 mm
End Connection Plain beveled ends, welding rings, flanges or threaded ( Thread male/female coupling ) .
The data for reference only, we can design it as the client’s request.

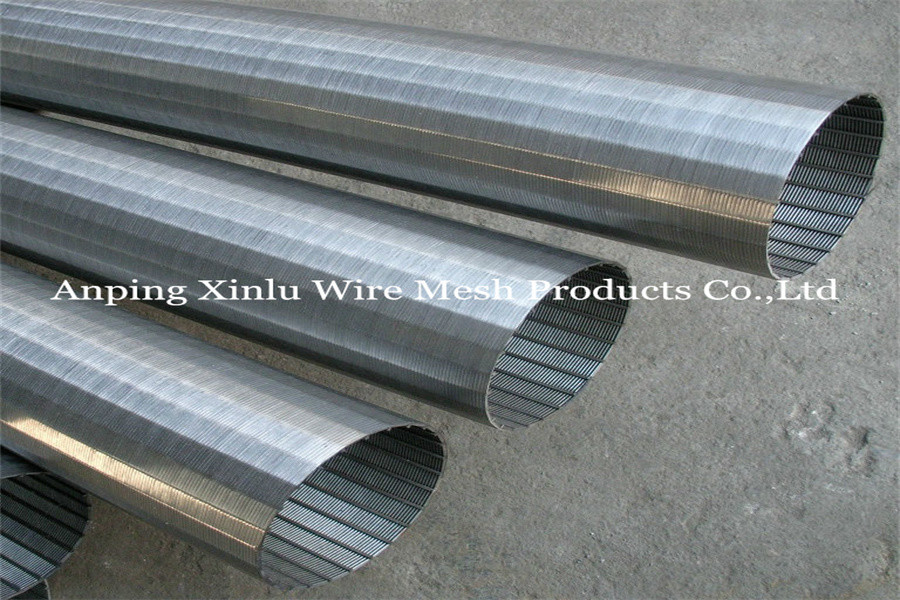

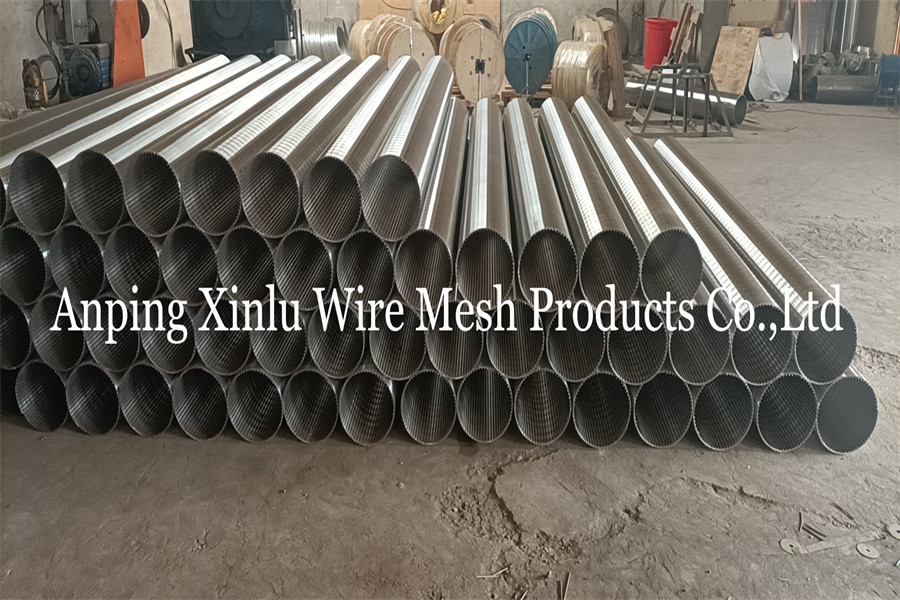

Continuous-Slot Well Screen is made by a v or wedge winding cold-rolled wire around an internal array of longitudinal support rods. The world advanced all-welded technology is used with each intersecting point of these wire fusion welded, which creates the robust construction and excellent mechanical performance. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water or oil entry your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well. All slots should be clean and free of burrs and cuttings and can be changed according to clients’ need.
Continuous Slot Wedge Wire Well Screen Pump Filter Pipe Application: For water, oil and gas wells, mainly water well industry. Can be used for water treating equipment, sea water transforms into industrial water equipment and life use water desalination treatment, running water treatment, water softening treatment. And the petroleum product terminal filters and chemical acid, alkali liquid filters, ethyl alcohol and the organic solution recycling filters.
Continuous Slot Wedge Wire Well Screen Pump Filter Pipe Specification:
| Screen Size | Inside Diameter | Outside Diameter | OD of Female Threaded End |
| in | mm | in | mm | in | mm | in | mm |
| 2 | 51 | 2 | 51 | 2 5/8 | 67 | 2 3/4 | 70 |
| 3 | 76 | 3 | 76 | 3 5/8 | 92 | 3 3/4 | 95 |
| 4 | 102 | 4 | 102 | 4 5/8 | 117 | 4 3/4 | 121 |
| 5 | 127 | 5 | 127 | 5 5/8 | 143 | 5 3/4 | 146 |
| 6 | 152 | 6 | 152 | 6 5/8 | 168 | 7 | 178 |
| 8 | 203 | 8 | 203 | 8 5/8 | 219 | 9 1/4 | 235 |
| 10 | 254 | 10 | 254 | 10 3/4 | 273 | 11 3/8 | 289 |
| 12 | 305 | 12 | 305 | 12 3/4 | 324 | 13 3/8 | 340 |
| 14 | 356 | 13 1/8 | 333 | 14 | 356 | - | - |
| 16 | 406 | 15 | 381 | 16 | 406 | - | - |
| 20 | 508 | 18 3/4 | 476 | 20 | 508 | - | - |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
