V Wire Wrapped Water Well Screen, Wedge Wire Wrapped Johnson well screen Tube
Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen.
Product Overview:
Anping County Xinlu Wire Mesh Products Co., Ltd presents our V Wire Wrapped Water Well Screens, also known as Wedge Wire Wrapped Johnson well screen tubes. These screens are designed for a wide range of well completion and workover operations, providing exceptional filtration and durability.
Key Product Details:
| Attribute | Specification |
| Name | Johnson Screen, Water Well Screen, etc. |
| Material | Stainless Steel 304, 316L, Non-magnetic SS, Low Carbon Galvanized, Duplex Steel |
| Diameter | 29-800mm (Standard sizes available upon request) |
| Slot | 0.1-100mm (Common slots: 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm) |
| Length | 100-6000mm (Standard lengths: 2.95m or 5.85m to fit container) |
| Ends | Welded Rings, Plain Beveled Ends, Threaded (API STC, PT NPT, BSP, G), Flange |
Packaging Options:
- Plastic bubble bag packaging
- Transparent plastic bag inside, woven bag outside
- Wooden box
- Pallet
Johnson Water Well Screen Regular Specifications:
| Name:Johnson Water Well Screen,Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen,Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
| Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized, Duplex, Hastelloy, etc. |
| Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 18" etc. |
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) |
| Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container) |
| Wrap wire: 1.5x2mm, 2x3mm,2.2x3.5mm,3x4.6mm,3x5mm,3x6mm,3x6.5mm,3.2x6mm,4x7mm etc. |
| Support rod:ø2.3mm-ø6.0mm round wire, Also can be Vee-shaped wire. |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. |
| Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
Type of profile wire and support wire
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
| HEIGHT(mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2.5--Ø6mm |
| HEIGHT(mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | ---- |
Product Description:
- The V-shaped profile of our Wedge wire screen pipe creates continuous slots that prevent clogging and ensure unobstructed water flow.
- The continuous slots feature a wider open area, reducing water entry velocity and effectively controlling sand, thereby increasing water yield and well service time.
- All-welded construction of wire and support rods enhances robustness and extends the product's lifespan.
- The longitudinal support rods and continuous slots provide superior pressure resistance.
- Custom specifications and end connections are available based on customer requirements.
Features:
- Non-clogging design
- Self-supported and rigid structure
- Long service life
- Reliable and consistent filtration rating
- All-metallic construction (non-metallic options like PP also available)
- Easy-to-clean smooth filtering surface
Customization:
Share your specifications for water well screen pipe, including diameter, slot opening size, length, and percentage of open area, and we will tailor our products to meet your exact needs.
Quality Assurance:
- Dedicated personnel monitor every production step to ensure quality.
- Professional engineers conduct comprehensive quality checks.
About Anping County Xinlu Wire Mesh Products Co., Ltd:
As a leading manufacturer of wire mesh products, we are committed to delivering innovative and high-quality filtration solutions. Our focus on customer satisfaction and product excellence ensures that you receive the best products and services in the industry.

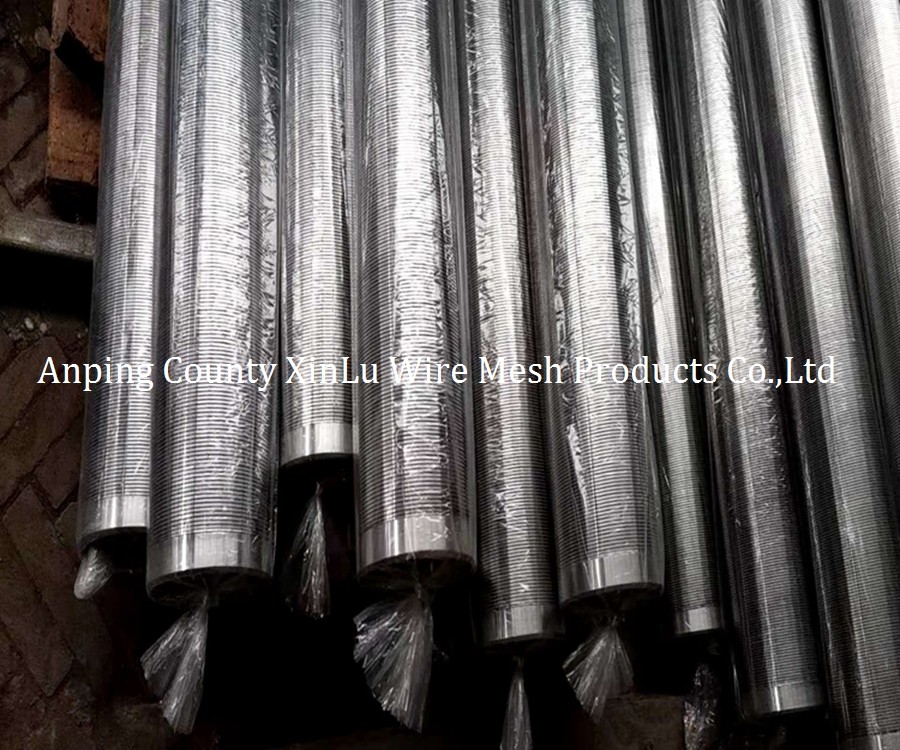

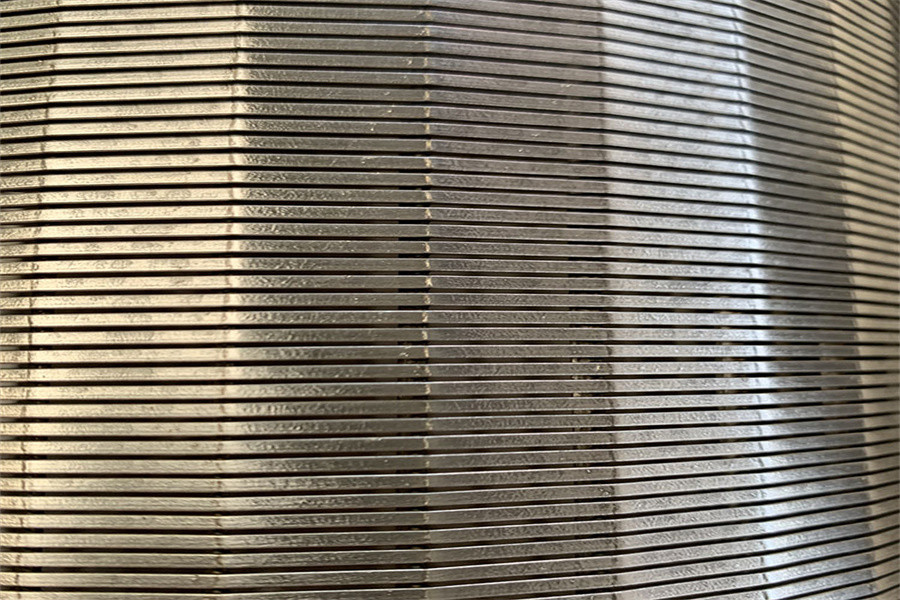

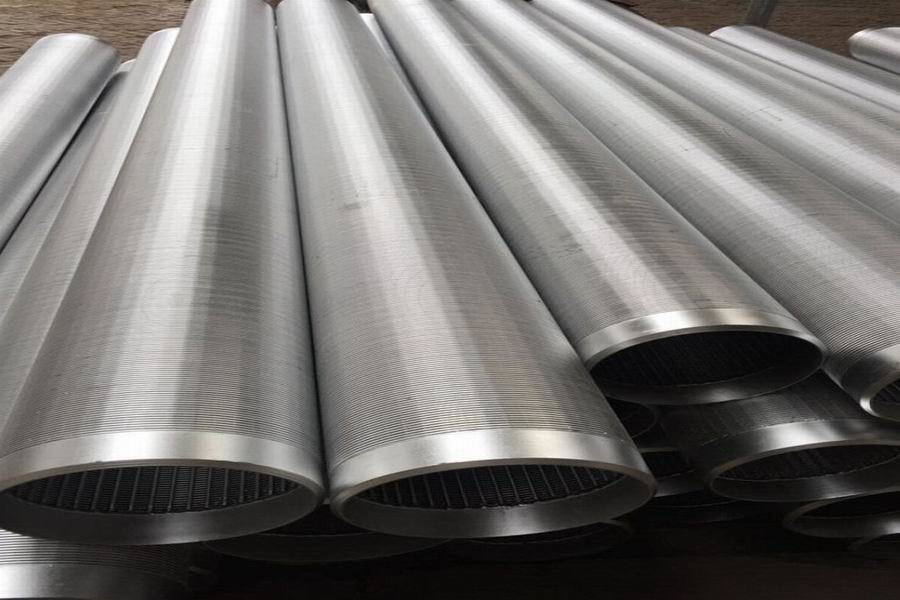

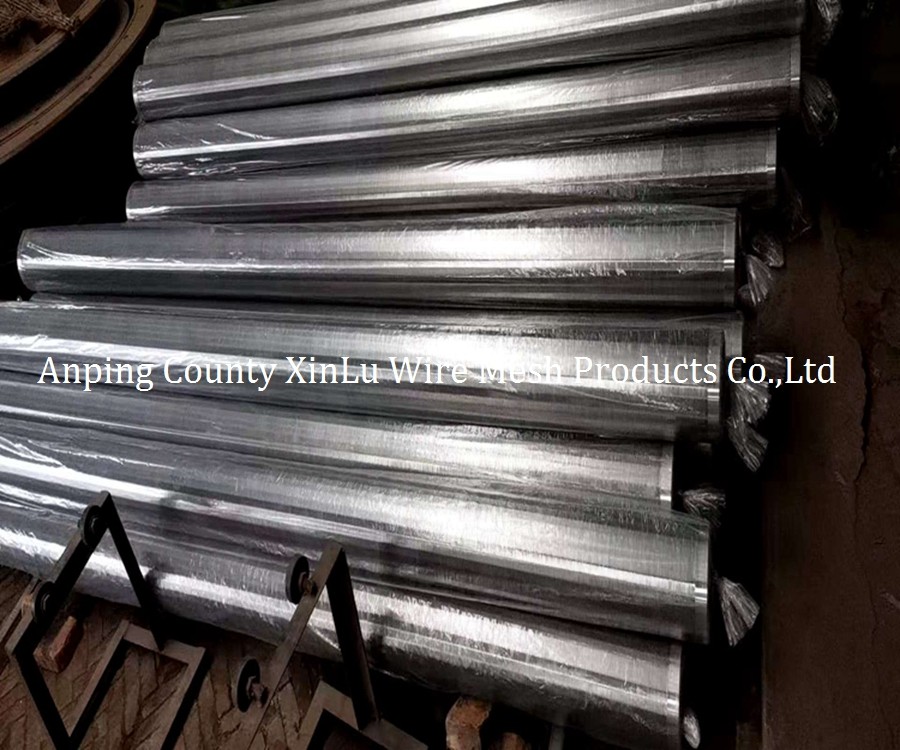

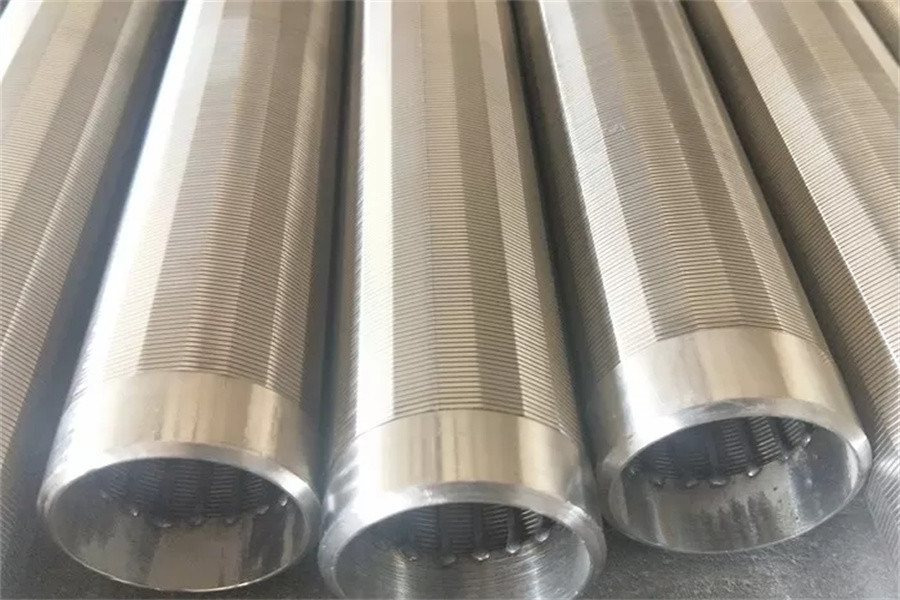

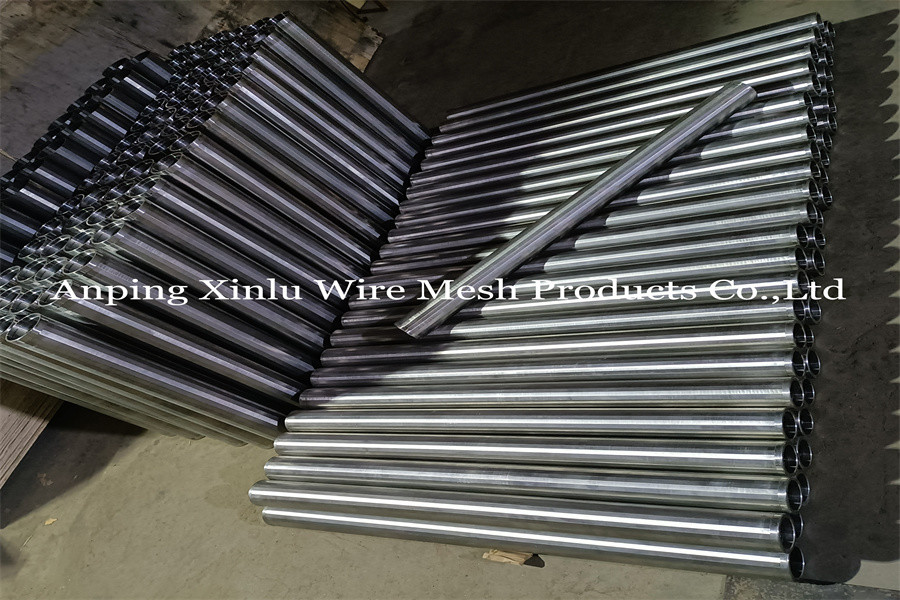

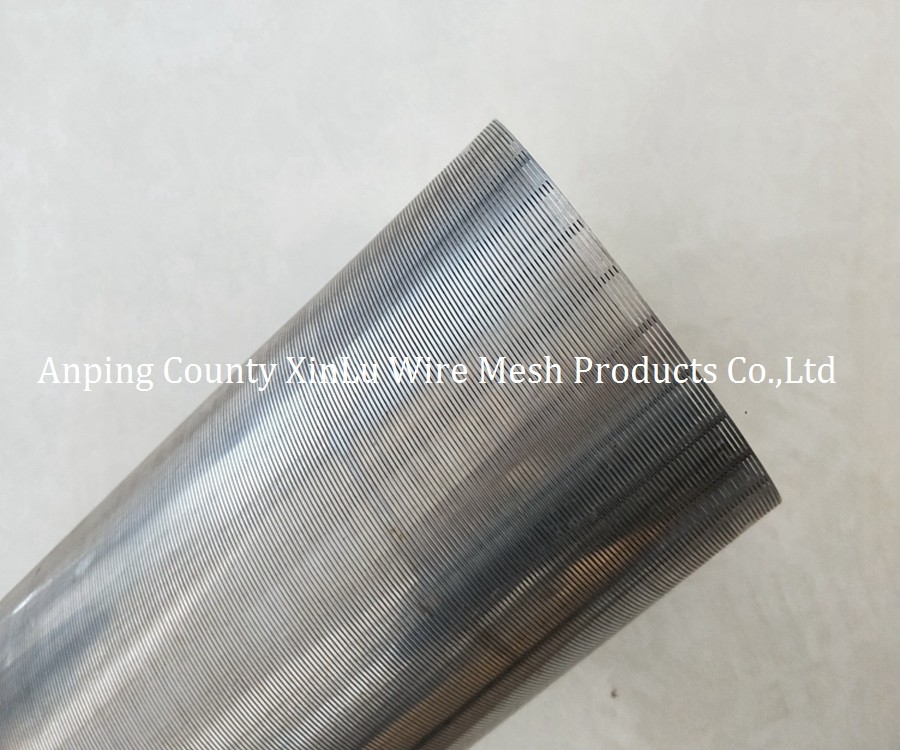

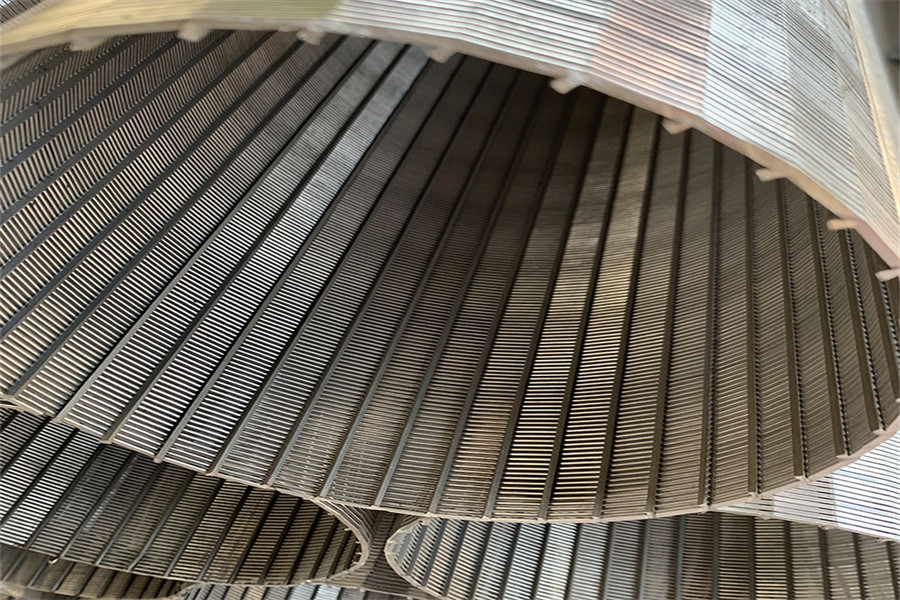

V Wire Wrapped Water Well Screen, Wedge Wire Wrapped Johnson well screen Tube Photos and production process:
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
