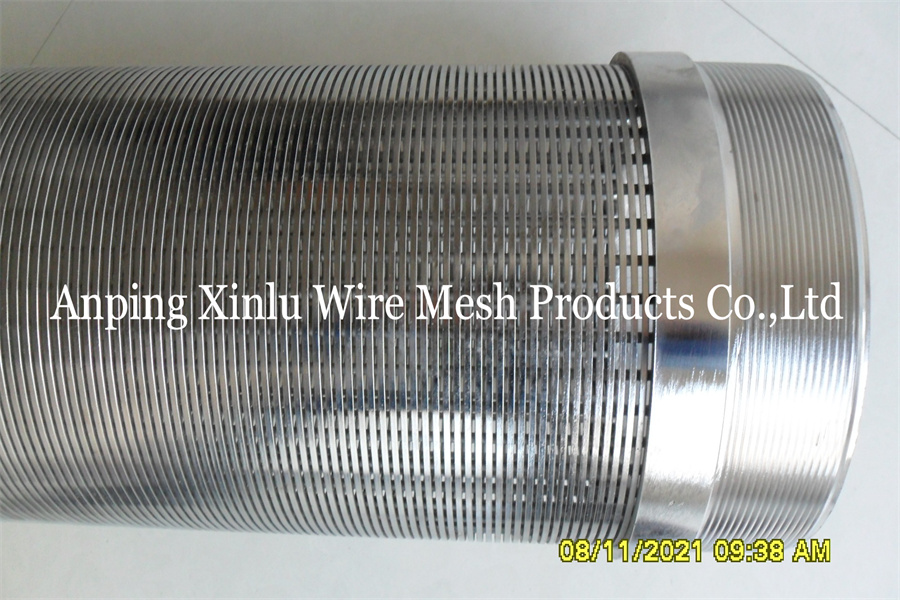

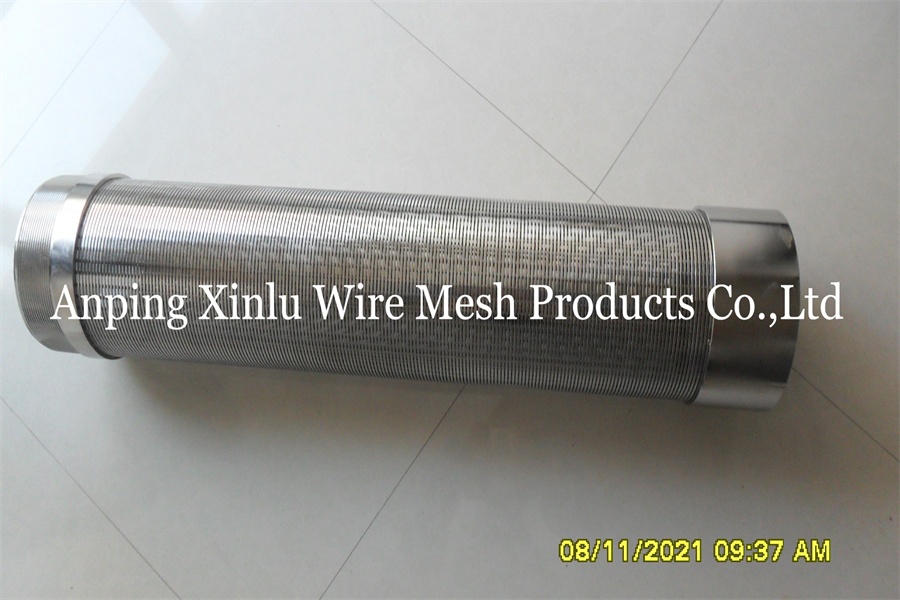

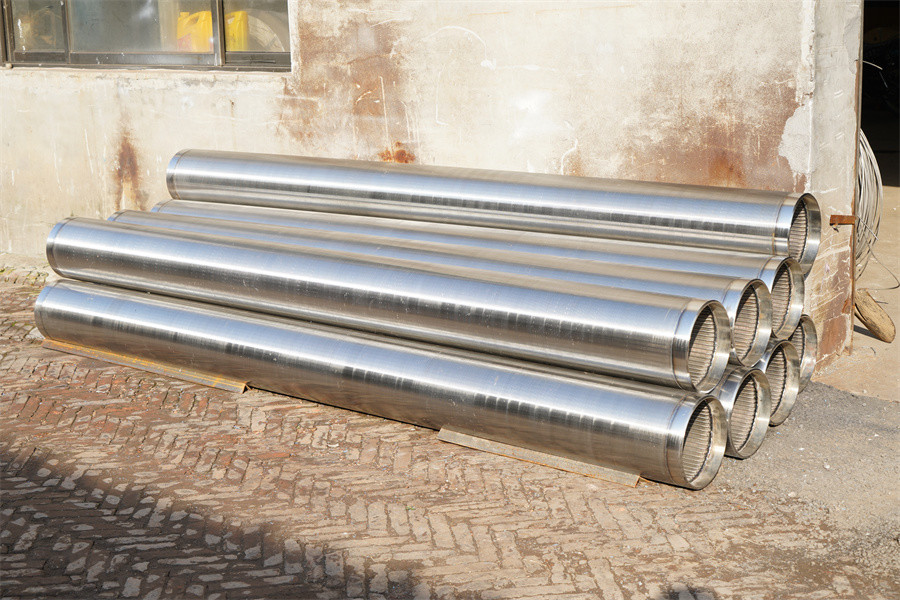

6 inch (152.40 mm) Inner Diameter Stainless Steel (SS)Wedge Wire Continuous Slot Strainer Pipe
wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,
Product Description:
1. 6 inch (152.40 mm) Inner Diameter Stainless Steel (SS 304)Wedge Wire Strainer Pipe
2. fittings and male and female ( short) (STC)
3. thread API 8 threads per inch, taper 6.25%
4. In length of 5.80 meters
5. Axial Strength (M.T) ≥ 20.00
6. Axial Compression ≥12.00
7. External Hudrostatic Pressure (PSI) ≥80.00
8. V-wire - Openings 1.0 mm minimum
9. Dimensions of the wire: L = 2.7 mm, H = 3.5 mm minimum
10.Dimension of support rods: Diameter 3.0mm, Number 32pcs
Stainless Steel Wedge Wire Strainer Pipe Production Range:
1. Material: 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc.
2. Diameter: 25-2000mm (customized)
3. Slot: min 0.05mm
4. Length: 100-6000mm
5. Flow Type: FITO, FOTI
6. Ends:
Welded rings/Plain beveled ends;
Male/female threaded coupling: API STC, PT NPT, BSP, G;
Flange ;
Closed up,
Open ends etc.
7. Usage: Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Quality assurance: 6 inch (152.40 mm) Inner Diameter Stainless Steel (SS 304)Wedge Wire Strainer Pipe
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality

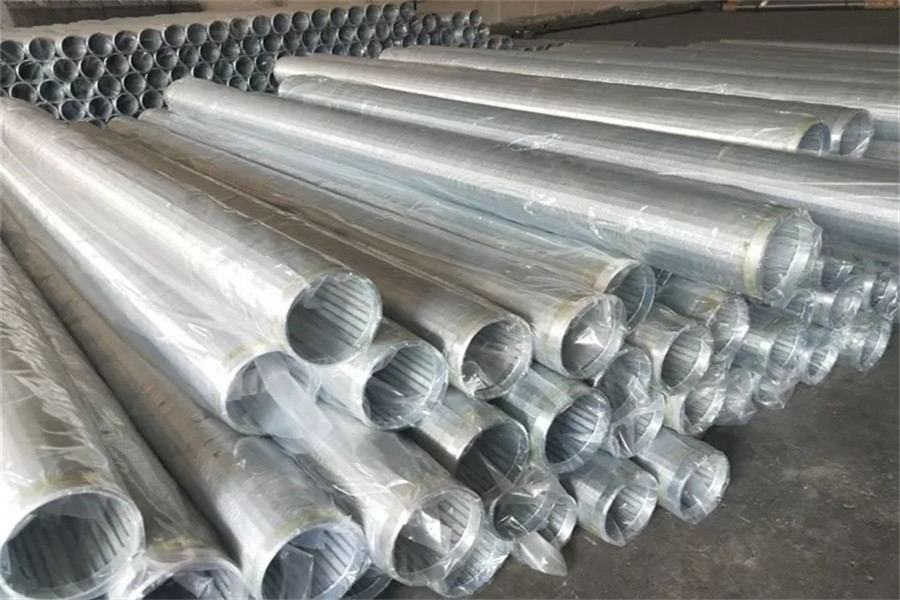

Package: Stainless Steel Wedge Wire Strainer Pipe
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Stainless Steel Wedge Wire Strainer Pipe Specification
|
SIZE
(INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE (WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | >22 | 10.2 | 2.3x3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | >28 | 11.5 | 2.3x3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3x3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.3x3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2x6.0 | 6.0MM/32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.3x3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 3.0x5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.2x6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.3x3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 3.0x5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.2x6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | >120 | 37.2 | 3.0x5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | >80 | 37.8 | 3.0x5.0 | 4.0MM/59 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
| HEIGHT(mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
| SUPPORT ROD | | | | | | ROUND |
| WIDTH(mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2.5--Ø6mm |
| HEIGHT(mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | ---- |
Stainless Steel Wedge Wire Strainer Pipe Application
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Product Tags:
|
|

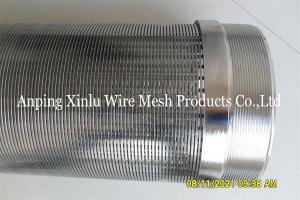

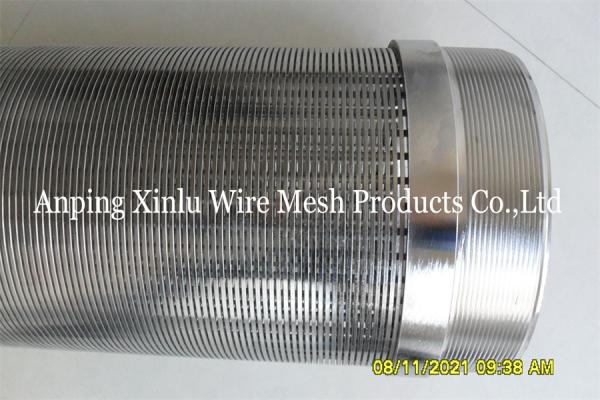

SS316L Wedge Wire Strainer Pipe 6 Inch 152.40mm Inner Diameter Continuous Slot Screen Tube Images
|
