Johnson Type Wire Wrapped Wedge Wire screen Energy Saving 10-4000mm Length Filter Rating 80% For Filter Treatment

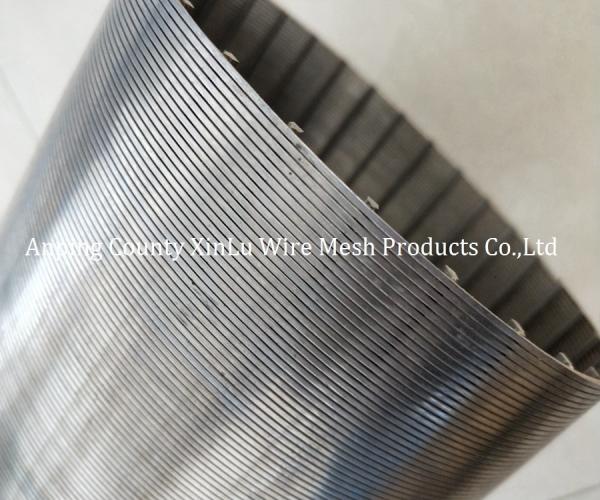

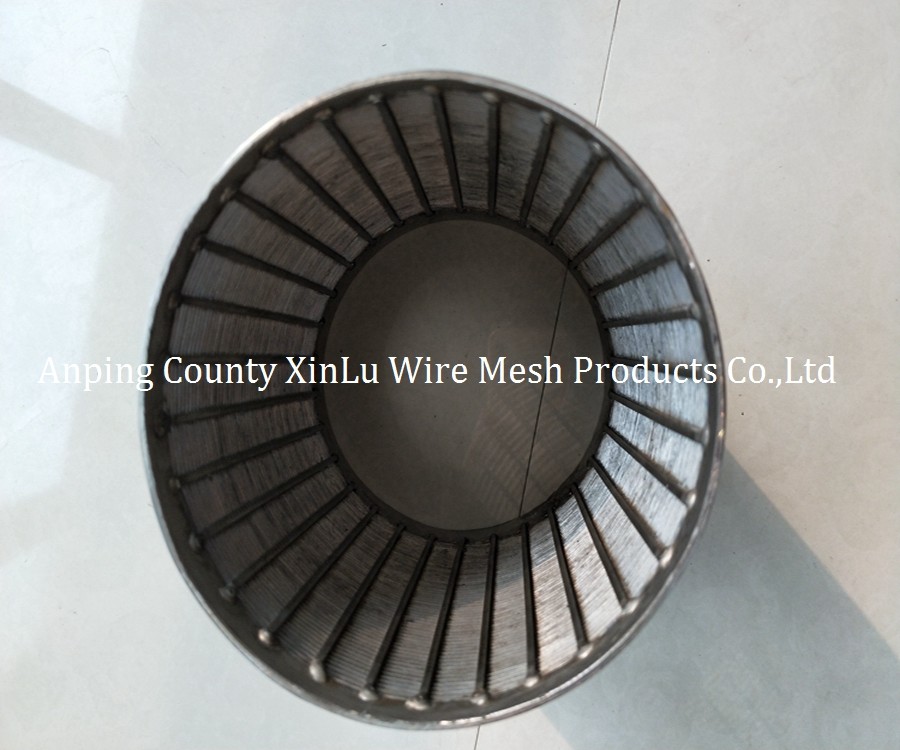

Stainless Steel 316L Johnson Wedge Wire Wrapped Screens and Tubes for Water Wells
Product Overview:
Anping County Xinlu Wire Mesh Products Co., Ltd introduces our Stainless Steel 316L Johnson Wedge Wire Wrapped Screens and Tubes, designed for exceptional filtration in water wells. These screens are crafted from premium stainless steel, ensuring durability and resistance to corrosion, making them suitable for various water well operations.
Key Features:
- Material: Stainless Steel 316L, known for its high corrosion resistance.
- Diameter: Available from 29mm to 800mm, with standard sizes listed in our product catalog.
- Slot Size: Ranging from 0.1mm to 100mm, with standard options at 0.5mm, 0.63mm, 0.75mm, 1.0mm, and 1.5mm.
- Length: Customizable from 100mm to 6000mm, with standard lengths of 2.9m and 5.8m to fit containers.
- Ends: Options include Welded Rings, Plain Beveled Ends, and Threaded Ends (API STC, PT NPT, BSP, G), as well as Flanges.
Applications:
Our Johnson Wedge Wire Wrapped Screens and Tubes are widely used in:
- Water wells
- Wastewater treatment
- Water supply systems
- Coal & mining
- Food & beverage filtration
- Environmental protection
- Refining & petrochemical
- Architecture & construction
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE (WIDTH x HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | >22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | >28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 2.5*4.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.0*4.6 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 2.5*4.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.0*4.6 | 4.0MM/60 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | >120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | >80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Customization:
We offer customization services to meet your specific filtration needs. Provide us with the details of your water well screen pipe, including diameter, slot opening size, length, and percentage of open area, and we will craft a product that meets your exact requirements.
Quality Assurance:
- Dedicated Quality Control: Each production process is supervised by specialized personnel.
- Professional Engineering Review: Our engineers conduct thorough quality checks to ensure product excellence.
FAQ:
Q1: Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q2: What about the lead time?
A: 3-5 days for sample preparation, 15-25 working days for mass production.
Q3: Do you have any MOQ limit for the order?
A: Low MOQ, with 3pcs available for sample checking.
Q4: How do you ship the goods and how long does it take to arrive?
A: We offer various shipping options, including express shipping which takes 5-7 days.
Q5: How to proceed an order?
A: Share your specifications, receive a quote, confirm and place a deposit, and we will arrange production.
Q6: Is it OK to print my logo on the product?
A: Yes, please inform us before production for logo printing.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
